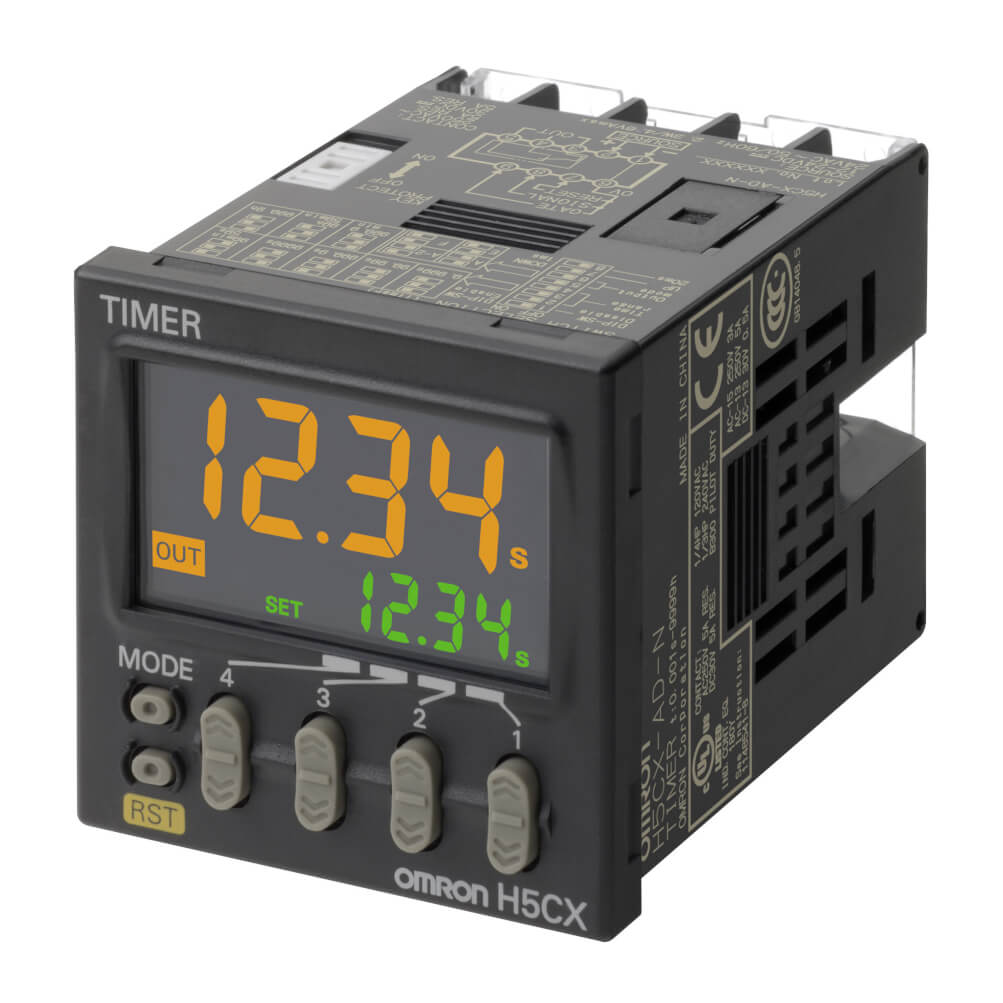

Omron H5CX-A11-N Multifunction Digital Timer 100~240VAC H5CXA11N SPDT

Description:

H5CXA11N DIGITAL TIMER H5CX SERIES 1/16 DIN STANDARD TYPE 11-PIN SOCKET SINGLE STAGE CONTACT OUTPUT (TIME-LIMIT SPDT) 100-240 V AC 50/60 HZ The Omron H5CX-A11-N is a multifunction digital timer designed for precise timing control in industrial automation systems. It offers a wide range of timing modes, including on-delay, off-delay, interval, and cyclic operation, making it suitable for various control tasks. With a clear and easy-to-read digital display, the H5CX-A11-N simplifies setup and monitoring. The unit operates on 100-240VAC and features an SPDT (Single Pole Double Throw) relay output, providing versatile control for different applications.

Technical Specifications:

• Model: H5CX-A11-N
• Type: Multifunction Digital Timer
• Supply Voltage: 100-240V AC
• Output Type: SPDT (Single Pole Double Throw) Relay
• Contact Rating: 5A at 250V AC / 30V DC
• Timing Modes: On-delay, off-delay, interval, one-shot, cyclic
• Timing Range: 0.001 seconds to 9,999 hours (configurable)
• Display: 4-digit, 7-segment LCD (with backlight)
• Operating Temperature Range: -10°C to +55°C
• Mounting Type: Panel mount (48 x 48 mm)
• Dimensions: 48 x 48 x 64 mm
• Enclosure Rating: IP66 (front panel)
• Programming Method: Button-controlled setup with selectable timing modes
