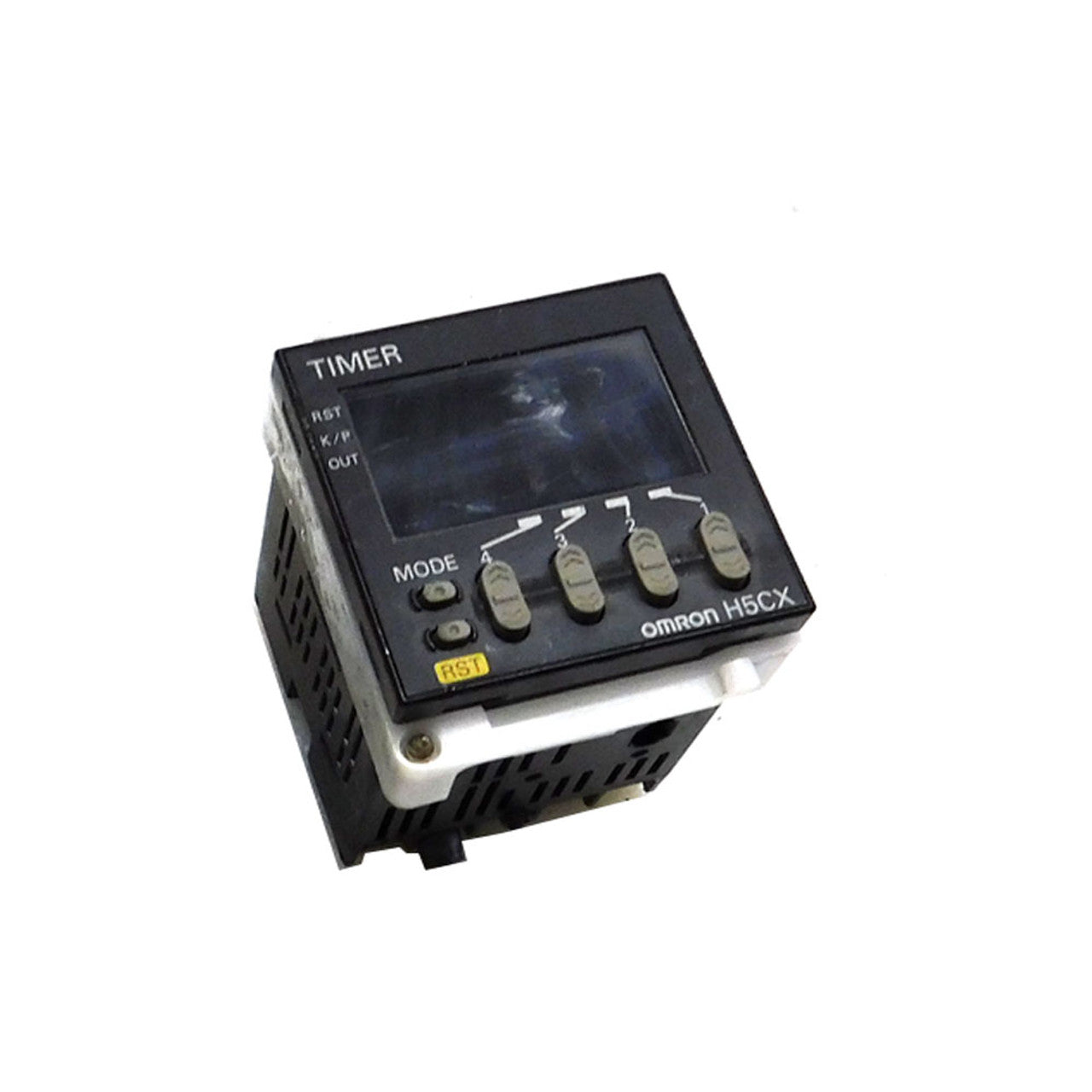

Omron H5CX-AD Timer 12-24VDC/24VAC H5CXAD

Description:

The Omron H5CX-AD Digital Timer is a multifunction timer used in industrial automation systems for precise time control and sequencing operations. Commonly installed in control panels and machinery to manage delays, intervals, and cyclic timing functions. Maintenance teams, OEMs, and system integrators use this timer for replacement, retrofit, and reliable timing control in automation processes.

Applications:

The Omron H5CX-AD Digital Timer is used in industrial automation systems requiring accurate timing control, including packaging machines, conveyor systems, process control, and production equipment. It is ideal for applications that demand flexible timing modes, high visibility display, and reliable performance in continuous operations.

Technical Specifications:

• Brand: Omron
• Part Number: H5CX-AD
• Product Type: Digital Timer (Multifunction Timer)
• Series: H5CX
• Supply Voltage: 12–24 V DC / 24 V AC
• Display: 4-digit LCD, high visibility
• Timing Range: 0.001 seconds to 9999 hours
• Input Type: NPN/PNP universal input (switchable)
• Output Type: Relay or transistor (model dependent)
• Operating Modes: ON-delay, OFF-delay, interval, repeat cycle, cumulative
• Functions: Twin timer, stopwatch mode, output counter, set value limit
• Mounting Size: 48 × 48 mm (panel mount)
• Protection Rating: IP66 (front panel with gasket)
• Application: Industrial timing and sequence control

Common Replacements:

• Omron H5CX-ASD-N
• Omron H5CC-A
• Omron H3CR-A
