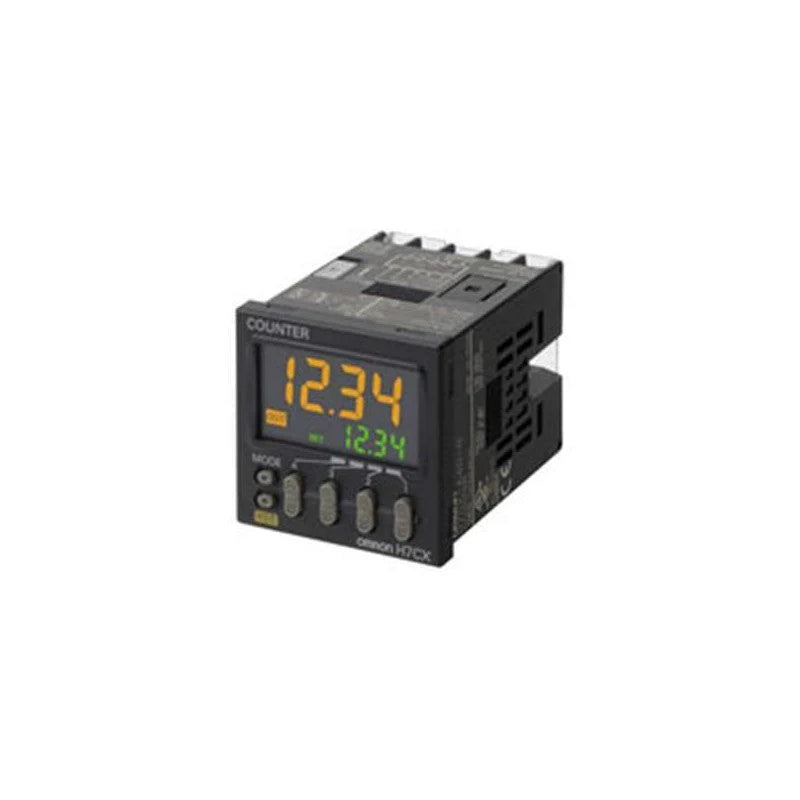

Omron H7CX-A4W-N Digital Counter H7CXA4WN

Description:

The Omron H7CX-A4W-N Digital Counter is a multifunction preset counter designed for industrial automation systems requiring accurate counting, timing, and monitoring. Commonly installed in control panels, machinery, and production lines to track pulses, events, and operational cycles. Maintenance teams, OEMs, and system integrators use this unit for replacement, retrofit, and reliable process monitoring.

Applications:

The Omron H7CX-A4W-N Digital Counter is used in industrial automation systems requiring precise counting and monitoring, including packaging machines, conveyor systems, batching processes, and production line tracking. It is ideal for applications that demand high-speed counting, flexible operating modes, and reliable performance in control environments.

Technical Specifications:

• Brand: Omron
• Part Number: H7CX-A4W-N
• Product Type: Digital Preset Counter / Multifunction Counter
• Series: H7CX-A
• Display: 4-digit LCD, high visibility
• Supply Voltage: 100–240 V AC
• Counting Speed: Up to 5 kHz (5,000 counts/sec)
• Functions: 2-stage preset counter, total counter, batch counter, dual counter, tachometer
• Output Type: Relay output (SPST + SPDT)
• Mounting Size: 48 × 48 mm (1/16 DIN panel mount)
• Input Type: Universal NPN/PNP input
• Protection Rating: IP66 (with panel gasket)
• Features: Color-changeable display, DIP switch settings, key protection
• Application: Industrial counting, monitoring, and control

Common Replacements:

• Omron H7CX-A4WSD-N
• Omron H7CC-A
• Omron H7EC-N
