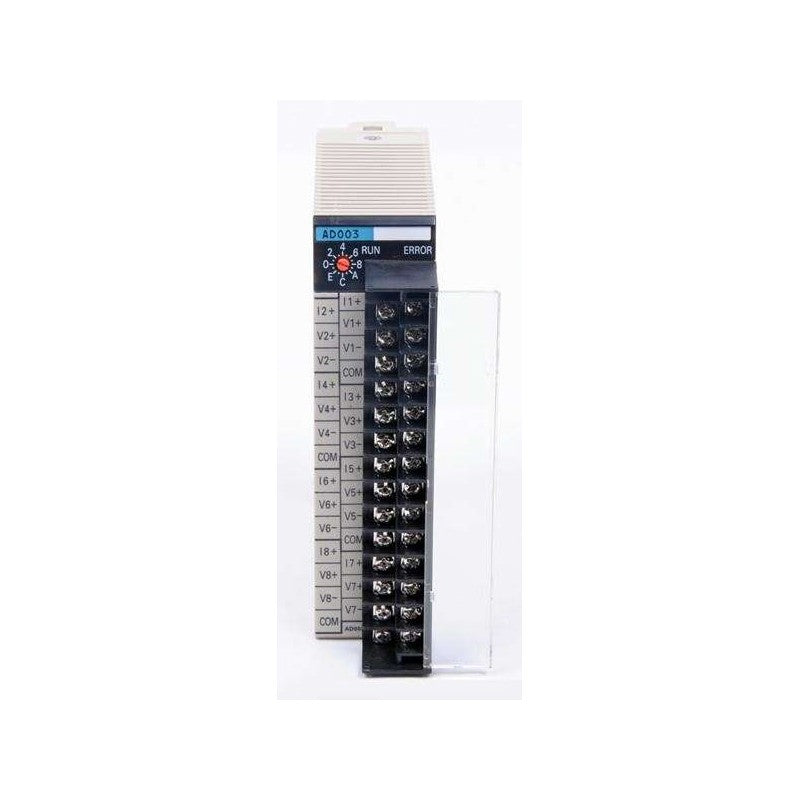

Omron C200H-AD003 I/O 8 In Analog Module A/D Unit C200HAD003

Description:

The Omron C200H-AD003 Analog Input Module is an A/D conversion unit used in Omron C200H PLC automation systems. Commonly installed in control racks to convert analog signals from sensors into digital data for PLC processing. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and accurate analog signal acquisition in industrial automation systems.

Applications:

The Omron C200H-AD003 Analog Input Module is used in industrial automation systems requiring precise analog signal measurement, including process control, temperature monitoring, pressure systems, and manufacturing lines. It is ideal for applications that demand stable signal conversion, flexible input configuration, and reliable integration with Omron C200H PLC platforms.

Technical Specifications:

• Brand: Omron
• Part Number: C200H-AD003
• Product Type: Analog Input Module (A/D Unit)
• Series: C200H
• Number of Inputs: 8 analog channels
• Input Signal Types:
• 4–20 mA
• 1–5 V, 0–10 V, -10 to 10 V
• Conversion Type: Analog-to-digital (A/D conversion)
• Conversion Time: Approx. 1 ms per channel
• Max Input Limits: ±15 V (voltage), ±30 mA (current)
• Isolation: Photocoupler isolation between inputs and PLC
• Power Consumption: Approx. 100 mA at 5V/26V DC
• Terminal Type: 28-point terminal block (M3 screws)
• Compatibility: C200H, C200HS, C200HX, C200HG, C200HE PLCs
• Lifecycle Status: Discontinued (replacement via CS/CJ series)
• Application: Analog signal acquisition for PLC systems

Common Replacements:

• Omron CS1W-AD081-V1
• Omron CJ1W-AD081-V1
• Omron C200H-AD002
