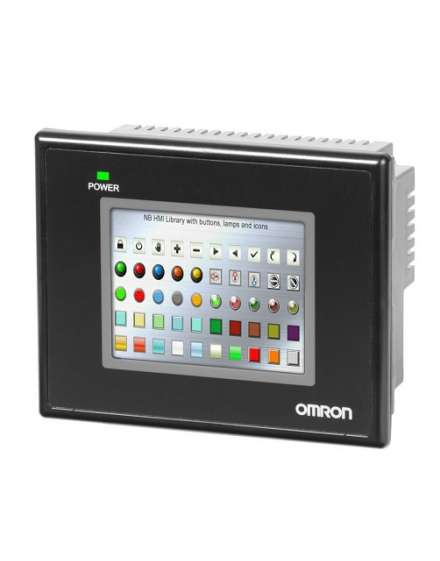

Omron NB3Q-TW00B COMPACT HMI TOUCH SCREEN PLC MODULE NB3QTW00B

Description:

NB3QTW00B COLOR DISPLAY LED BACKLIGHTING 3.5IN DISPLAY TFT LCD 320X240 DOTS The Omron NB3Q-TW00B is a user-friendly, compact HMI touch screen designed for industrial automation. It provides an intuitive interface for operators to monitor and control machinery and processes. Featuring a high-resolution touch display, this module allows for easy navigation and interaction with machine controls. Its compact size makes it ideal for installations in tight spaces, while its robust build ensures reliable performance in demanding environments. The NB3Q-TW00B supports various communication protocols, making it a versatile choice for integrating with different PLCs and control systems.

Technical Specifications:

• Model: NB3Q-TW00B
• Display Type: TFT-LCD Touch Screen
• Screen Size: 3.5 inches
• Resolution: 320 x 240 pixels
• Backlight: LED
• Touch Panel: Resistive
• Communication Ports: 1 x RS-232, 1 x RS-485
• Power Supply: 24 V DC
• Current Consumption: Approx. 150 mA
• Operating Temperature: 0°C to +50°C
• Storage Temperature: -20°C to +60°C
• Environmental Protection: IP65F (front panel)
• Mounting Type: Panel Mount
• Dimensions: 95 mm x 77 mm x 40 mm
• Weight: Approx. 300 g
