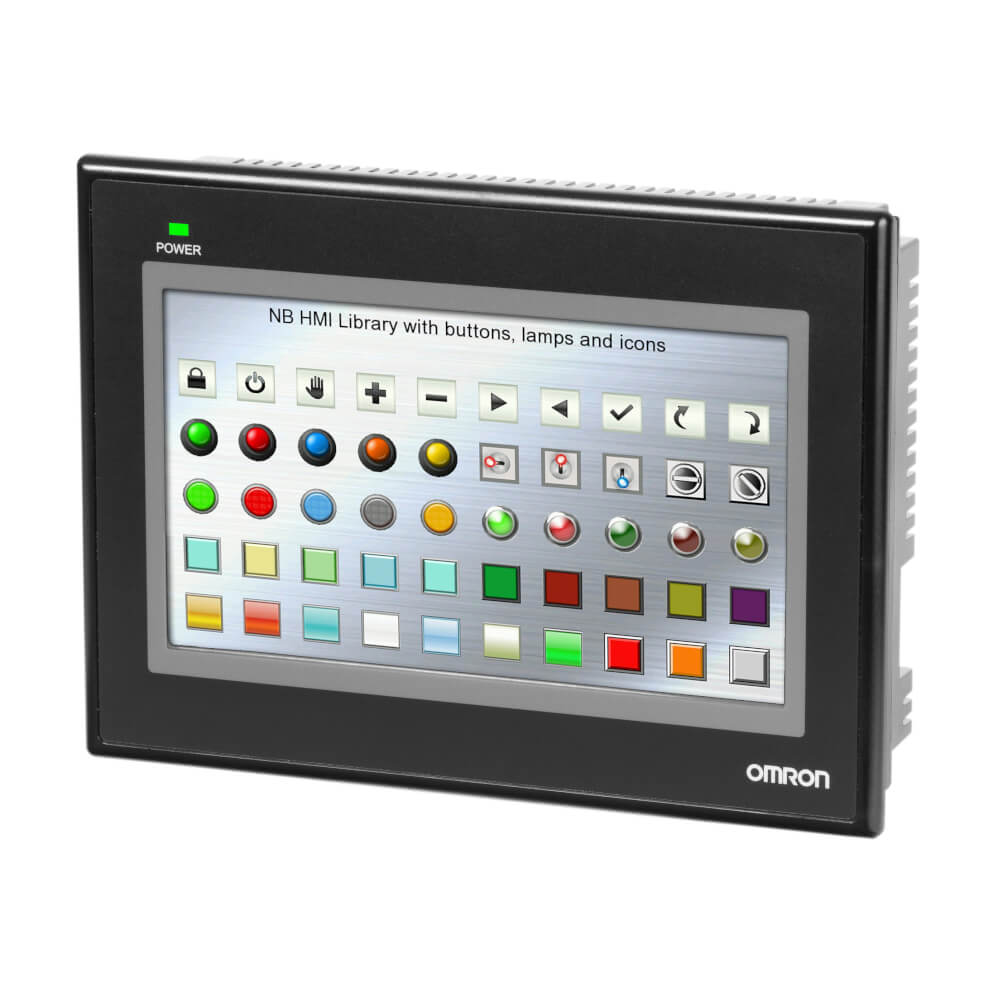

Omron NB7W-TW01B Automation Compact Programmable Logic Controller NB7WTW01B

Description:

NB7WTW01B OPERATOR INTERFACE NB SERIES 24 VDC 11 WATT OUTPUT: 5 VDC 250 MA TFT LCD 800 X 480 PIXEL RESOLUTION 65536 COLOURS USB HOST 0 TO 50 DEGREE C IP65 RECOMMENDED REPLACEMENT: NB7W-TW01B-V1 The NB7W-TW01B is a compact and highly versatile touch panel from Omron’s NB Series, designed to provide intuitive human-machine interface (HMI) capabilities for industrial automation systems. Featuring a sleek, high-resolution 7-inch display with a responsive touchscreen, the NB7W-TW01B offers clear visualization and easy operation of control processes. Its user-friendly interface, combined with advanced connectivity options, makes it ideal for efficient system monitoring and control in a wide range of industrial applications.

Technical Specifications:

• Model: NB7W-TW01B
• Type: Touch Panel HMI
• Screen Size: 7 inches
• Display Type: TFT color LCD
• Resolution: 800 x 480 pixels
• Touchscreen: Capacitive touch panel
• Processor: High-speed CPU
• Memory:
• RAM: 128 MB
• Flash Memory: 256 MB
• Communication Ports:
• Ethernet: 1 port (10/100 Mbps)
• Serial Ports: 2 x RS-232/RS-485
• Operating Temperature: 0 to 50°C
• Dimensions: 209 x 148 x 34 mm (approximate)
• Weight: 1 kg (approximate)
• Mounting: Panel mount
• Protection Class: IP65 (front panel)
• Features: High-resolution display, intuitive touch interface, versatile connectivity options
