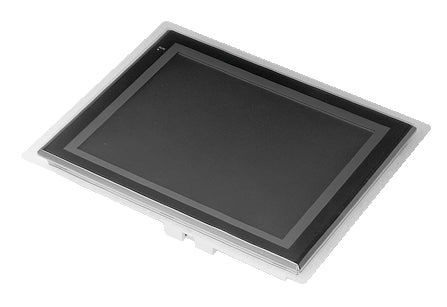

Omron NS10-TV01B-V2 Operator Panel NS10TV01BV2

Description:

The Omron NS10-TV01B-V2 operator panel is used in industrial automation systems to provide human-machine interface (HMI) control and real-time monitoring for PLC-based equipment. Commonly installed in control panels, packaging machines, production lines, and process control systems requiring advanced visualization and operator interaction. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining reliable HMI functionality in industrial automation systems.

Applications:

The Omron NS10-TV01B-V2 HMI is used in industrial environments where real-time system monitoring and operator control are essential. It is applied in assembly lines, material handling systems, packaging equipment, and process control panels to display operational data, allow parameter adjustments, and enable efficient human-machine interaction within PLC-controlled automation systems.

Technical Specifications:

• Manufacturer: Omron
• Part Number: NS10-TV01B-V2
• Product Type: HMI Operator Panel
• Series: Omron NS Series
• Display Size: 10.4 inches
• Display Type: TFT color LCD
• Resolution: 640 x 480 pixels
• Input Method: Touchscreen interface
• Communication Ports: Ethernet, USB, RS-232C / RS-422A / RS-485
• Supported PLCs: Omron PLC series and compatible controllers
• Power Supply: 24 VDC
• Mounting Type: Panel mount
• Memory: Internal memory for application and data logging
• Operating Temperature: 0°C to +50°C

Common Replacements:

• Omron NS8-TV00B-ECV2 HMI Panel
• Omron NB10W-TW01B HMI Panel
• Omron NS12-TS00B-V2 HMI Panel
