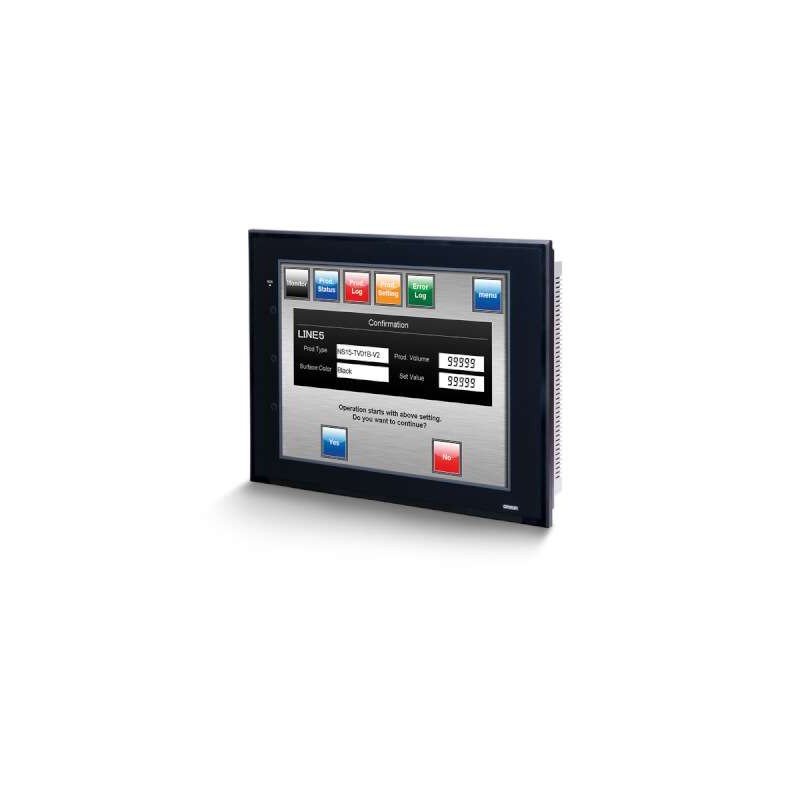

Omron NS12-TS00B-V2 TOUCH SCREEN DIGITIZER PANEL MEMBRANE GLASS REPLACEMENT NS12TS00BV2

Description:

NS12TS00BV2 OPERATOR INTERFACE 12.1 INCHES HD TFT COLOR LCD 256 DISPLAY COLORS 24 VDC 25 W BLACK CASE NO ETHERNET The NS12-TS00B-V2 is a versatile touch screen HMI that combines a large, high-resolution display with a responsive touchscreen interface. This model is designed to facilitate easy and effective control of industrial equipment and processes, offering a range of features to enhance user interaction and system monitoring. With its robust design and advanced connectivity options, the NS12-TS00B-V2 supports integration with various automation systems and provides reliable performance in demanding industrial environments.

Technical Specifications:

• Model: NS12-TS00B-V2
• Display:
• Type: TFT LCD
• Size: 12.1 inches
• Resolution: 800 x 600 pixels
• Touchscreen: Resistive touch panel
• Communication Ports:
• Ethernet: For network connectivity and communication with other devices
• Serial Ports: RS-232C and RS-422/485 for serial communication
• USB: For data transfer and additional peripherals
• Power Supply:
• Operating Voltage: 24V DC ±10%
• Power Consumption: Approximately 25W
• Memory:
• Flash Memory: 64MB (for storing programs and data)
• RAM: 32MB (for temporary data and processing)
• Mounting Type: Panel mount
• Dimensions:
• Width: 345 mm
• Height: 250 mm
• Depth: 56 mm
• Weight: Approximately 2.5 kg
• Operating Temperature Range: 0°C to +50°C
• Special Features:
• Built-in Functions: Includes tools for creating and managing user interfaces, alarms, and historical data logging
• Software Compatibility: Compatible with Omron's NS-series programming software for easy setup and configuration
