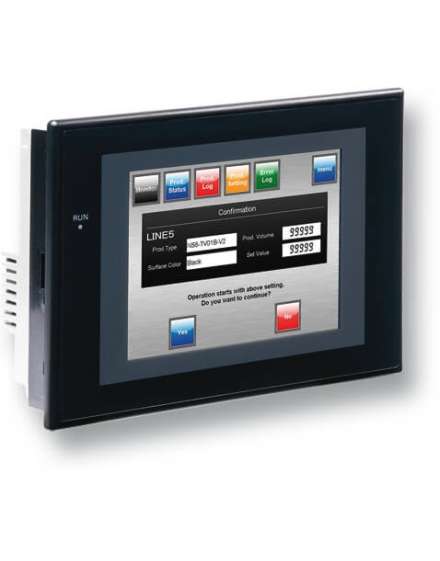

Omron NS5-SQ10B-V2 PLC Interactive Display 5.7" LCD 24V 15W Ver 3.19 Cover

Description:

The Omron NS5‑SQ10B‑V2 interactive display is used in industrial control systems as an operator interface for monitoring and interacting with PLC programs. Commonly installed on factory automation panels, machinery consoles, and process control systems to visualize data, alarms, and machine status. Maintenance teams and system integrators use this HMI display for system upgrades, operator interface replacement, and enhanced machine control visualization.

Applications:

The Omron NS5‑SQ10B‑V2 display is widely used in manufacturing environments requiring operator interaction with automated systems. It is commonly found in assembly machines, packaging lines, material handling systems, and CNC equipment where real‑time data visualization, touch control inputs, and machine status feedback are essential for efficient operation and troubleshooting.

Technical Specifications:

• Display size: 5.7‑inch LCD
• Resolution: 320 × 240 pixels
• Supply voltage: 24 VDC
• Power consumption: Approx. 15 W
• Touch interface: Resistive touchscreen
• Version: Ver 3.19 software/firmware
• Interface: RS‑232 / RS‑422 / Ethernet (model dependent)
• Mounting: Panel‑mount bezel design
• Compatibility: Omron PLC systems (e.g., CP1, CJ, CS, NX series)
• Indicator: On‑screen status and alert indicators
• Operating temperature: Typically 0–50 °C
• Backlight: LED backlight design
• Housing: Industrial‑grade enclosure

Common Replacements:

• Omron NS5‑SQ10B‑V1
• Omron NS8‑WSP
• Weintek MT8071iH HMI panel
