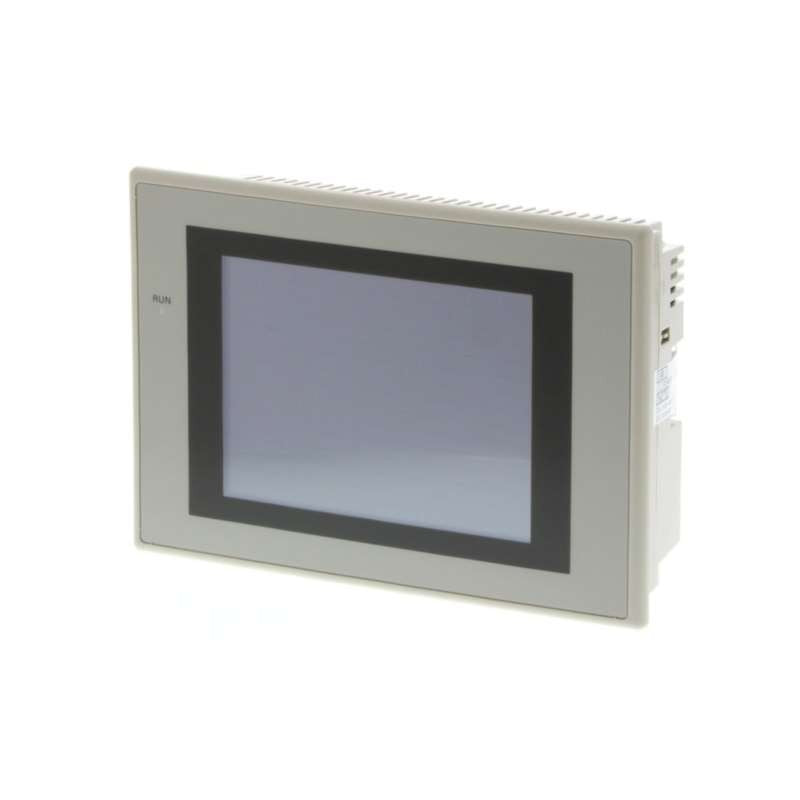

Omron NS5-SQ11-V NS5SQ11V

Description:

The Omron NS5-SQ11-V Touchscreen HMI is used in industrial automation systems for operator interface, monitoring, and machine control visualization. Commonly installed in compact machinery, packaging equipment, small production lines, and conveyor systems. Maintenance teams and system integrators use this part for system retrofits, replacement of damaged HMIs, and efficient operator control upgrades.

Applications:

The Omron NS5-SQ11-V is utilized in industrial environments requiring compact and reliable human-machine interaction, including manufacturing cells, food processing equipment, assembly stations, and material handling systems where real-time monitoring, control input, and diagnostics are essential for maintaining operational efficiency.

Technical Specifications:

• Manufacturer Part Number (MPN): NS5-SQ11-V
• Product Type: Touchscreen Human Machine Interface (HMI)
• Display Size: 5.7 inches TFT LCD
• Resolution: 320 x 240 pixels (QVGA)
• Display Colors: 256 colors
• Input Type: Analog resistive touchscreen
• Communication Ports: RS-232C, RS-422/485
• Ethernet: Not supported
• Power Supply: 24 VDC
• Memory: Internal flash memory
• Mounting Type: Panel mount
• Operating Temperature: 0°C to 50°C
• Protection Rating: IP65 (front panel)
• Software Compatibility: Omron CX-Designer

Common Replacements:

• Omron NS5-SQ10-V2
• Omron NB5Q-TW01B
• Omron NS8-TV00B-V2
