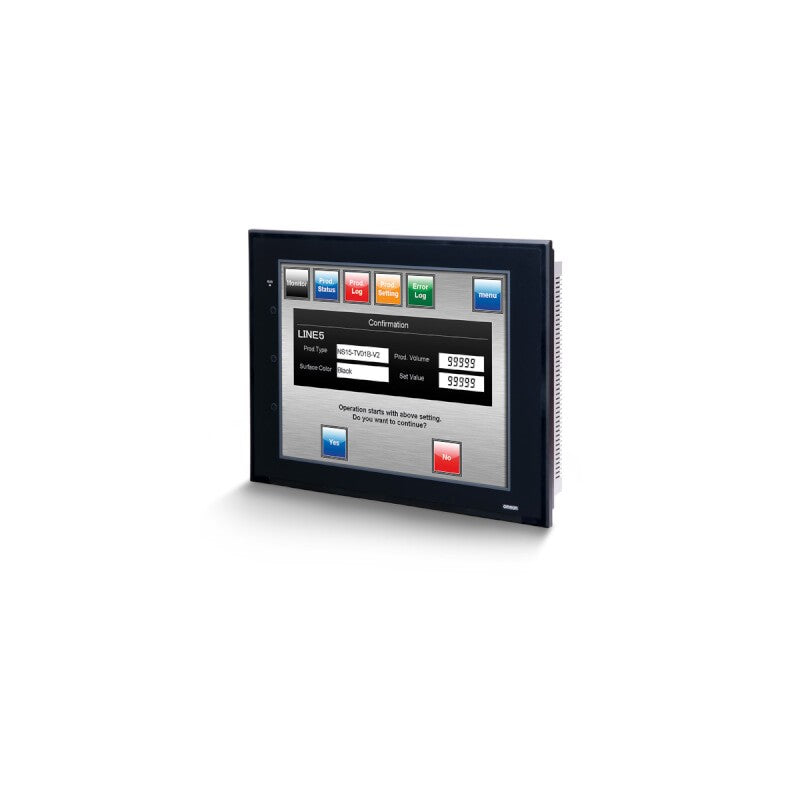

Omron NS8-TV00-V2 INTERFACE TOUCHSCREEN NS8TV00V2

Description:

NS8TV00V2  OPERATOR INTERFACE TOUCHSCREEN TFT 8 INCH 24V DC 640X480 PIXELS 2 X RS-232C PORTS 60MBYTE MEMORY SERIAL+USB IVRY IP65 The NS8-TV00-V2 is a high-performance and versatile touch screen human-machine interface (HMI) from Omron, designed to enhance the interaction between operators and industrial machines or processes. Featuring an 8-inch TFT LCD display with a high-resolution touchscreen, this HMI provides clear and intuitive visualizations for complex control tasks. The NS8-TV00-V2 supports a wide range of connectivity options and has an extensive library of built-in functions for creating user-friendly interfaces. Its durable design and advanced features make it suitable for use in various industrial automation applications, providing seamless control and monitoring capabilities.

Technical Specifications:

• Model: NS8-TV00-V2
• Display: 8-inch TFT LCD
• Resolution: 800 x 600 pixels
• Touchscreen: Analog resistive type
• Color Display: 65,536 colors
• Processor: High-performance CPU for responsive operation
• Memory: 16 MB Flash memory for application storage
• Communication Ports:
• 1 x Ethernet (10/100 Mbps)
• 1 x RS-232C
• 1 x RS-422/485 (for PLC communication)
• Operating Voltage: 24V DC
• Power Consumption: Approximately 20W
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 60°C
• Dimensions (W x H x D): 232 x 159 x 43 mm
• Weight: Approximately 1.1 kg
• Mounting Type: Panel mount
• Protection Rating: IP65F (front panel)
