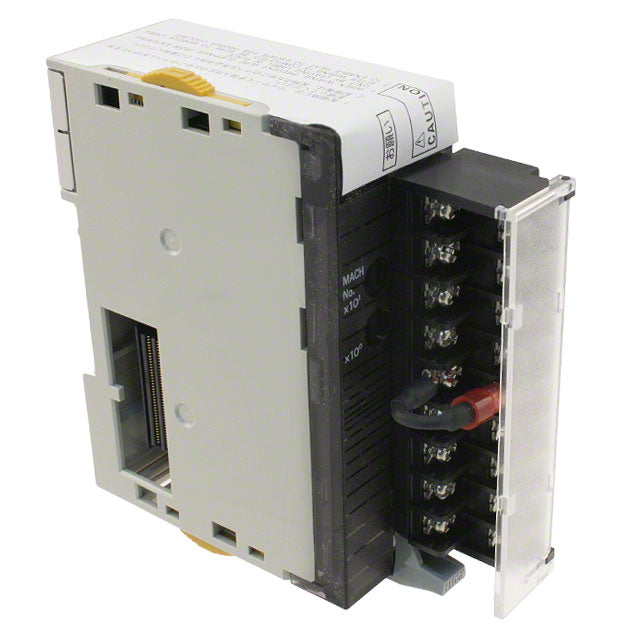

Omron PLC CJ1W-AD041-V1 Analog Module CJ1WAD041V1

Description:

The Omron CJ1W-AD041-V1 analog input module is used in Omron CJ-series PLC systems to provide precise analog signal acquisition for process control applications. Commonly installed in control panels, manufacturing systems, HVAC equipment, and process automation lines requiring accurate monitoring of analog signals. Maintenance teams and system integrators use this part for system expansion, replacement, and ensuring reliable analog data processing in PLC-based systems.

Applications:

The Omron CJ1W-AD041-V1 analog module is used in industrial environments for monitoring variables such as temperature, pressure, flow, and level. It is widely applied in process control systems, water treatment plants, food processing equipment, and manufacturing lines where accurate analog input measurement is essential for automation and control.

Technical Specifications:

• Manufacturer Part Number (MPN): CJ1W-AD041-V1
• Product Type: PLC Analog Input Module
• Series: CJ1W Series
• Compatible PLC: Omron CJ1 Series
• Analog Inputs: 4 channels
• Input Signal Types: Voltage (0–10 V), Current (4–20 mA)
• Resolution: High-resolution analog conversion (approx. 12-bit)
• Conversion Speed: Fast analog processing
• Input Impedance: Model dependent
• Connection Type: Screw terminal
• Mounting Type: PLC rack mount
• Power Supply: Supplied via PLC backplane
• Isolation: Channel-to-channel isolation
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-AD081-V1
• Omron CJ1W-MAD42
• Omron CP1W-AD041
