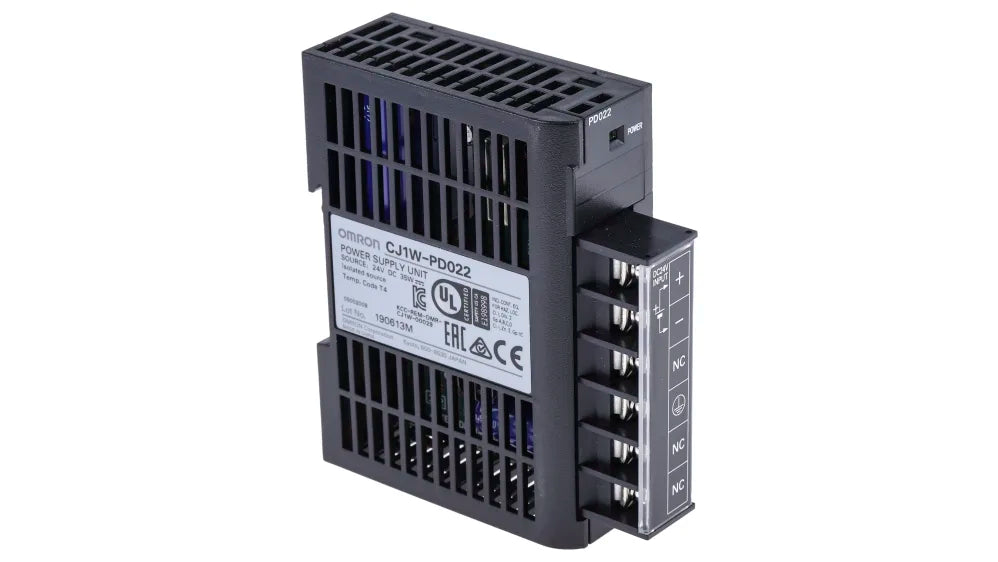

Omron PLC Power Supply CJ1W-PD022 CJ1WPD022 Programmable Logic Controller CJ1WPD022

Description:

The Omron CJ1W-PD022 PLC Power Supply Unit is used in CJ1 series PLC systems for providing stable and regulated power to CPU and I/O modules. Commonly installed in control panels, manufacturing lines, packaging machines, and automation systems requiring reliable PLC power distribution. Maintenance teams, OEMs, and system integrators use this part for system power supply, replacement, retrofit, and ensuring continuous automation operation.

Applications:

The Omron CJ1W-PD022 power supply module is used in industrial automation environments to supply consistent power to PLC racks and connected modules. It is widely applied in production lines, material handling systems, process control equipment, and machinery automation where stable power is critical for system performance and reliability.

Technical Specifications:

• Manufacturer Part Number (MPN): CJ1W-PD022
• Product Type: PLC Power Supply Unit
• Series: CJ1
• Input Voltage: 100–240 VAC
• Output Voltage: 5 VDC (for PLC backplane)
• Output Current: Approx. 5 A
• Power Capacity: Approx. 25 W
• Function: Supplies power to CPU and expansion modules
• Mounting Type: Rack-mounted (CJ1 PLC system)
• Compatible PLC: Omron CJ1 series
• Protection Features: Overcurrent and overvoltage protection
• Operating Temperature: 0°C to 55°C

Common Replacements:

• Omron CJ1W-PD025
• Omron CJ1W-PD026
• Omron CJ1W-PA202
