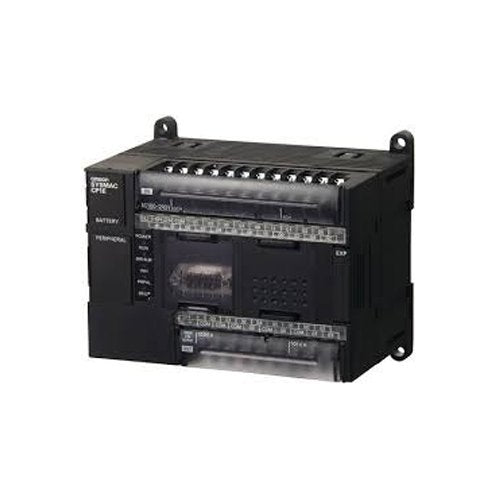

Omron Programmable Logic Controller CP1E-N30DR-A CONTROL LOG 30 I/O 100-240VAC CP1EN30DRA

Description:

The Omron CP1E-N30DR-A Programmable Logic Controller is used in industrial automation systems for machine control and process logic operations. Commonly installed in packaging machines, conveyor systems, assembly lines, and OEM equipment requiring reliable PLC control. Maintenance teams, OEMs, and system integrators use this part for system control, replacement, retrofit, and automation upgrades.

Applications:

The Omron CP1E-N30DR-A PLC is used in industrial environments for controlling sequential operations, monitoring inputs and outputs, and automating machinery processes. It is widely applied in packaging equipment, material handling systems, food processing machines, and small-scale production lines where compact and reliable control solutions are required.

Technical Specifications:

• Manufacturer Part Number (MPN): CP1E-N30DR-A
• Product Type: Programmable Logic Controller (PLC), Base Unit
• Series: CP1E
• Total I/O Points: 30
• Digital Inputs: 18
• Digital Outputs: 12 relay outputs
• Input Voltage: 100–240 VAC
• Output Type: Relay
• Program Capacity: Approx. 8K steps
• Data Memory: Approx. 8K words
• Communication Ports: USB (built-in), optional serial
• Mounting Type: DIN rail or panel mount
• Operating Temperature: 0°C to 55°C
• Expansion Capability: Supports expansion modules

Common Replacements:

• Omron CP1E-N40DR-A
• Omron CP1L-M30DR-A
• Omron CP1H-XA40DR-A
