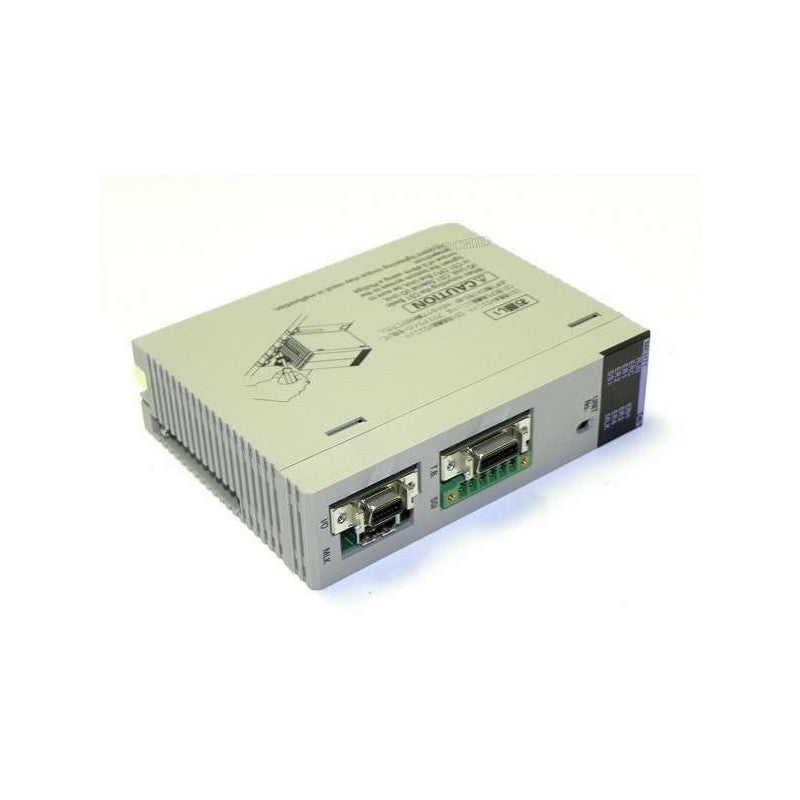

Omron CS1W-MCH71 Programmable Logic Controller Module Motion Control Unit CS1WMCH71

Description:

The Omron CS1W-MCH71 motion control unit is used in Omron CS1 series PLC systems to provide advanced multi-axis motion control and synchronization for industrial automation applications. Commonly installed in CNC machines, robotics, packaging equipment, and automated production lines requiring precise coordinated motion. Maintenance teams and system integrators use this part for system expansion, replacement, and enhancing motion control performance in PLC-based systems.

Applications:

The Omron CS1W-MCH71 motion control unit is used in industrial environments for controlling servo motors and complex motion sequences such as interpolation, cam control, and synchronized positioning. It is widely applied in assembly machines, material handling systems, semiconductor equipment, and precision manufacturing processes where high-speed and accurate motion control is critical.

Technical Specifications:

• Manufacturer Part Number (MPN): CS1W-MCH71
• Product Type: PLC Motion Control Unit
• Series: CS1W Series
• Control Axes: Multi-axis motion control (model dependent)
• Control Method: Position, speed, and synchronized motion control
• Output Type: Pulse output / network-based servo control
• Compatible PLC: Omron CS1 Series
• Motion Functions: Linear interpolation, circular interpolation, cam control
• Communication: High-speed internal PLC bus
• Connection Type: Dedicated motion control interface
• Mounting Type: PLC rack mount
• Power Supply: Supplied via PLC backplane
• Indicators: LED status indicators
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-MCH72
• Omron NJ501-1300
• Omron NX-PF0630
