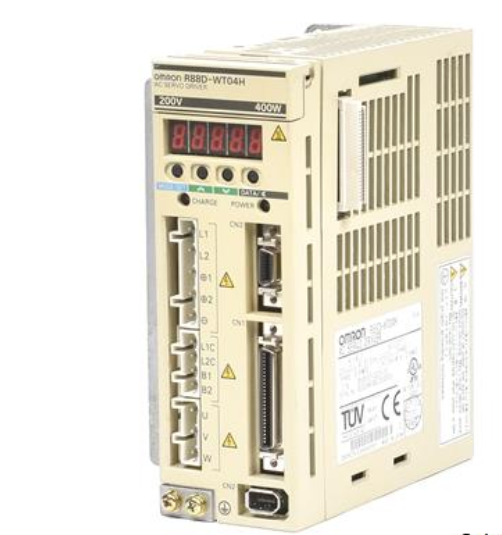

Omron R88D-WT04H Servo Drive R88DWT04H

Description:

R88DWT04H SERVO DRIVE 0.4 KW / 0.5 HP 1 PHASE INPUT 200-230 VAC 50/60 HZ 5.5 AMP 3 PHASE OUTPUT 0-230 VAC 2.8 AMP The R88DWT04H is a high-performance servo drive designed to deliver precise and efficient control for a wide range of motion control applications. This servo drive is part of Omron's robust R88 series, known for its reliability and advanced features. It is engineered to work seamlessly with corresponding servo motors, offering smooth and accurate motion control. The R88DWT04H supports various control modes, including position, speed, and torque control, making it adaptable to different operational requirements.

Technical Specifications:

• Model: R88DWT04H
• Power Supply: 200V AC
• Output Power: 400W
• Control Modes: Position control, speed control, torque control
• Feedback: Incremental encoder (17-bit)
• Communication Interface: RS-422/RS-485
• Operating Frequency: 50/60 Hz
• Protection Features: Overcurrent, overvoltage, overtemperature, and encoder error protection
• Ambient Temperature Range: 0°C to 55°C
• Mounting: Panel mounting
• Dimensions: 50mm x 150mm x 150mm
• Weight: Approximately 1.5kg
• Compliance: CE, UL, and RoHS certified
