Omron

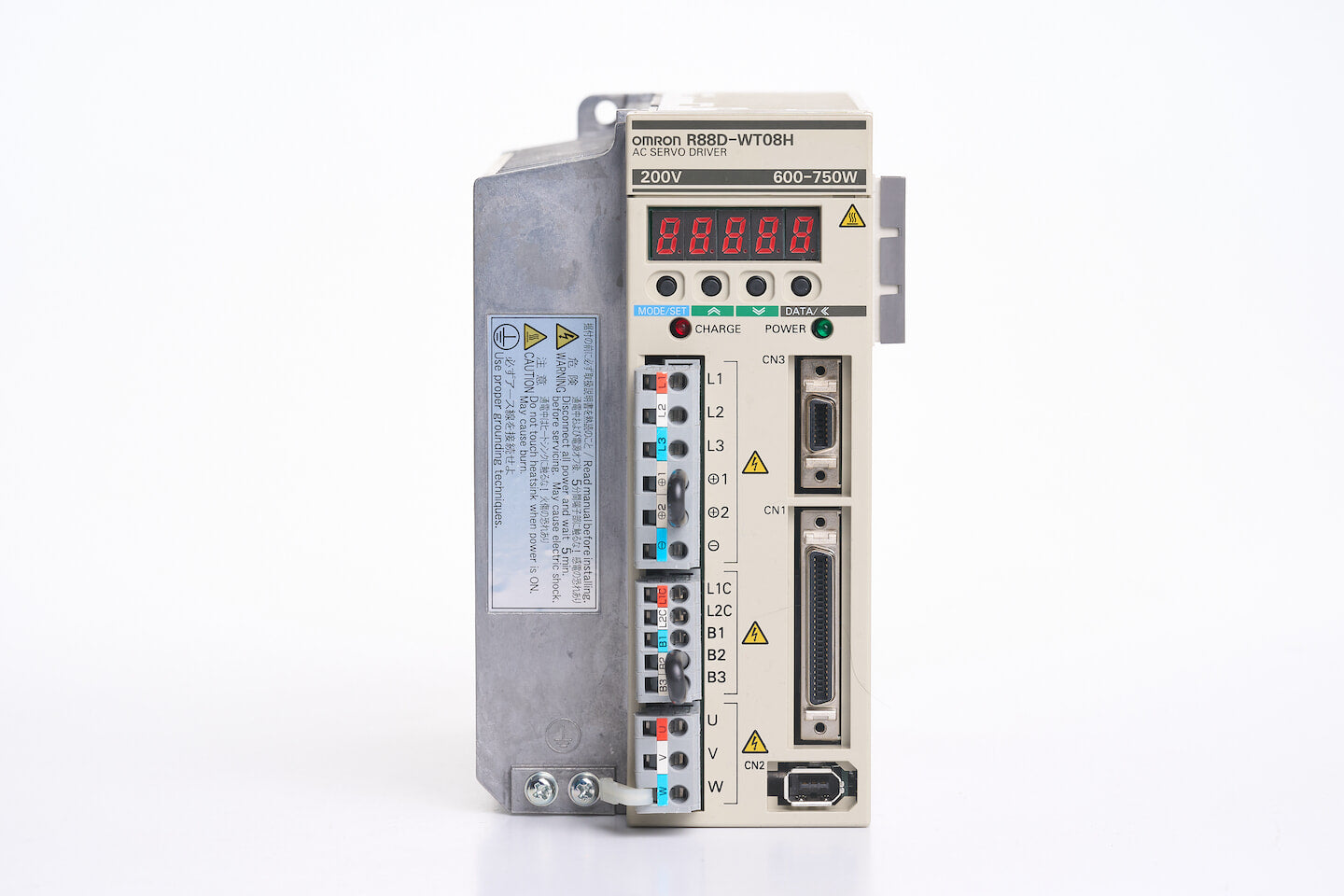

Omron R88D-WT08H R88DWT08H

Omron R88D-WT08H R88DWT08H

Condition
Regular price $1,777.00
Regular price Sale price $1,777.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

R88DWT08H DISCONTINUED BY MANUFACTURER AC SERVO DRIVER OMNUC W 750 W 200-230 VAC INPUT 50/60 HZ 3 PHASE 0-230V OUTPUT The R88D-WT08H is a high-performance servo drive unit from Omron’s R88D series, designed to work seamlessly with Omron’s servo motors to deliver precise and efficient motion control. This model features advanced control capabilities, including high-speed and high-torque operation, making it suitable for a wide range of automation applications. The R88D-WT08H is known for its reliability and robustness in industrial environments, providing smooth and accurate servo performance.

Technical Specifications:

  • Model: R88D-WT08H
  • Type: Servo Drive Unit
  • Power Rating: 750W
  • Input Voltage: 200-230V AC, 3-phase
  • Current Rating: 8A (peak)
  • Communication Interface:
  • Encoder: Incremental encoder or absolute encoder (depending on motor)
  • Communication Protocols: Compatible with Omron's EtherCAT, and other communication options (depending on model variant)
  • Control Method: Position, speed, and torque control
  • Feedback Device: Encoder with up to 20-bit resolution
  • Operating Temperature Range: 0°C to +55°C
  • Storage Temperature Range: -20°C to +65°C
  • Dimensions (W x H x D): 60 x 280 x 220 mm
  • Weight: Approximately 3.5 kg
  • Mounting Type: DIN rail mountable
  • Environmental Protection: IP20 (suitable for installation in an enclosure)
  • Compliance: RoHS compliant
