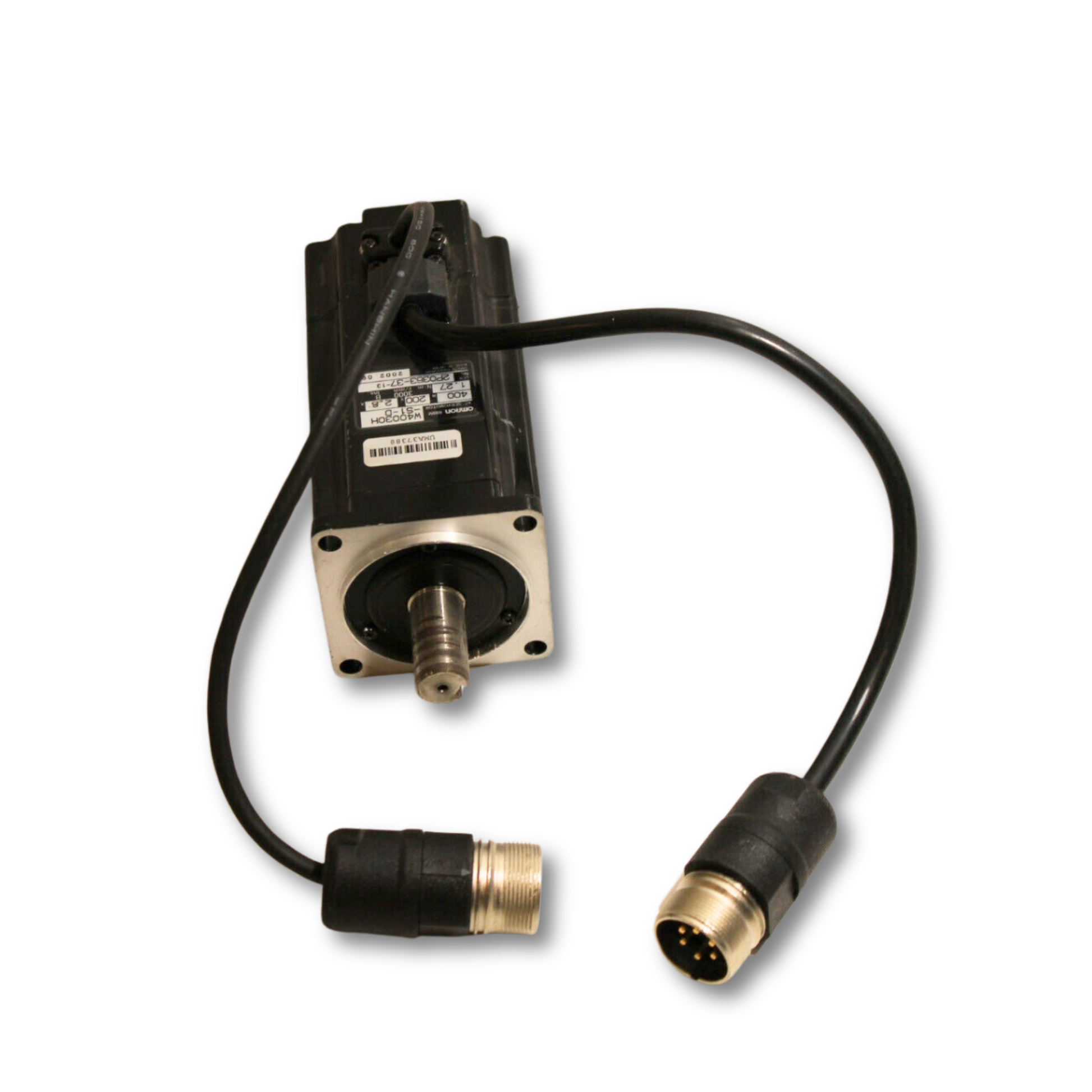

Omron R88M-W4003 R88MW4003

Description:

R88MW40030HS1 DISCONTINUED BY MANUFACTURER SERVO MOTOR 200 VAC 400 W 13 INC KEY AC ROHS COMPLIANT INCREMENTAL The R88M-W40030H-S1 is a high-performance servo motor from Omron’s R88M series, designed to provide precise and reliable motion control in industrial automation applications. This model features a 400W power rating and integrates advanced technology to deliver smooth and accurate operation. The R88M-W40030H-S1 is ideal for applications requiring high torque and speed, offering excellent performance for tasks such as positioning, speed control, and torque control in various machinery and automated systems.

Technical Specifications:

• Model: R88M-W40030H-S1
• Type: Servo Motor
• Power Rating: 400W
• Rated Voltage: 200-230V AC
• Rated Current: 2.3A
• Rated Speed: 3000 RPM
• Torque:
• Rated Torque: 1.27 Nm
• Peak Torque: 3.82 Nm
• Feedback Device: Incremental encoder with 2500 pulses per revolution
• Brake: Optional (model variant)
• Operating Temperature Range: 0°C to +40°C
• Storage Temperature Range: -20°C to +60°C
• Dimensions (W x H x D): 80 x 80 x 150 mm
• Weight: Approximately 4.0 kg
• Mounting Type: Flange mountable
• Environmental Protection: IP54 (dust-tight, protected against water splashes from any direction)
• Compliance: RoHS compliant
