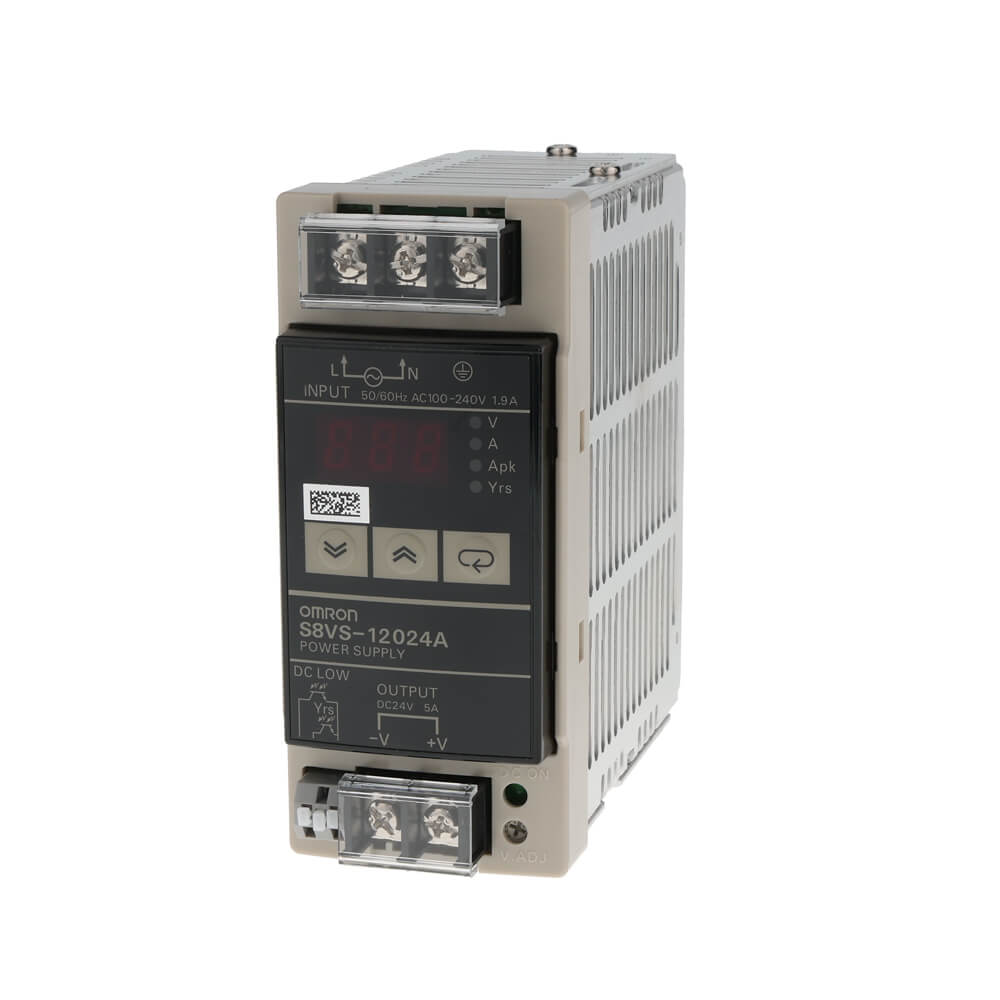

Omron S8VS-12024A DC Power Supply 24VDC 5A 50/60Hz S8VS12024A

Description:

S8VS12024A SWITCH MODE POWER SUPPLY 120 WATT 24 VOLT OUTPUT WITH INDICATION MONITOR (MAINTENANCE FORECAST MONITOR) SINKING (EMITTER COM) ALARM The S8VS-12024A is a high-performance power supply unit from Omron’s S8VS series, designed to deliver stable and reliable 24V DC power in industrial environments. With a power rating of 120W, this model is well-suited for driving control systems, automation devices, and other critical equipment. It features a compact design for DIN rail mounting, making it easy to integrate into control panels and other space-constrained areas. The S8VS-12024A ensures safe and efficient operation with built-in short-circuit, overload, and overvoltage protections.

Technical Specifications:

• Model: S8VS-12024A
• Type: DIN Rail Mount Power Supply
• Output Voltage: 24V DC
• Output Current: 5A
• Power Rating: 120W
• Input Voltage Range: 100-240V AC, 50/60Hz
• Efficiency: Approximately 88% (typical)
• Protection Features:
• Short-Circuit Protection: Yes
• Overload Protection: Yes
• Overvoltage Protection: Yes
• Operating Temperature Range: -10°C to +60°C
• Storage Temperature Range: -20°C to +85°C
• Dimensions (W x H x D): 70 x 90 x 95 mm
• Weight: Approximately 0.7 kg
• Mounting Type: DIN rail mountable
• Environmental Protection: IP20 (suitable for installation in an enclosure)
• Compliance: RoHS compliant, UL, CE certified
