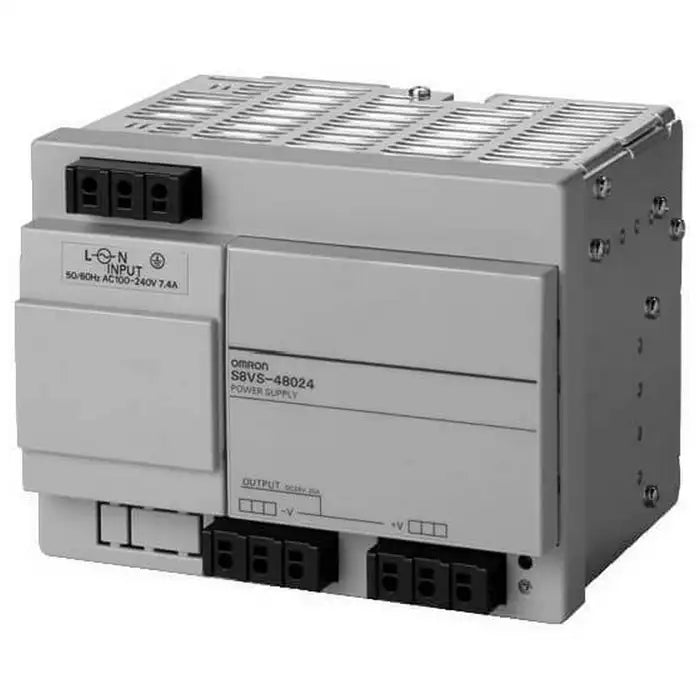

Omron S8VS-48024 S8VS48024

Description:

S8VS48024 POWER SUPPLY 480 WATT 24 VDC 100 - 240 VAC 20 AMP 1 PHASE 1 OUTPUT COVERED TYPE SCREW TERMINAL ADJUSTABLE OUTPUT DIN RAIL MOUNTING The Omron S8VS-48024 is a high-performance switch-mode power supply designed for reliable and efficient power delivery in industrial automation and control systems. This model provides a stable 24V DC output with a high current capacity of 20A, making it suitable for powering demanding loads in automation equipment, machinery, and control panels. The S8VS-48024 features a compact, DIN-rail mountable design that allows for easy installation and integration into control panels. Its robust construction and wide input voltage range ensure dependable operation in a variety of environments, while its advanced protection features safeguard against overloads and short circuits.

Technical Specifications:

• Model: S8VS-48024
• Type: Switch-Mode Power Supply
• Output Voltage: 24V DC
• Output Current: 20A
• Output Power: 480W
• Input Voltage Range: 100-240V AC (single-phase)
• Input Frequency: 50/60 Hz
• Efficiency: Approximately 90% (typical)
• Ripple and Noise: 120 mV peak-to-peak (max)
• Protection Features: Overload protection, Short-circuit protection, Over-voltage protection
• Cooling: Convection cooling
• Operating Temperature Range: -10°C to 60°C
• Humidity Range: 20% to 90% RH (non-condensing)
• Enclosure Rating: IP20 (protection against dust and accidental contact)
• Mounting Type: DIN Rail mount
