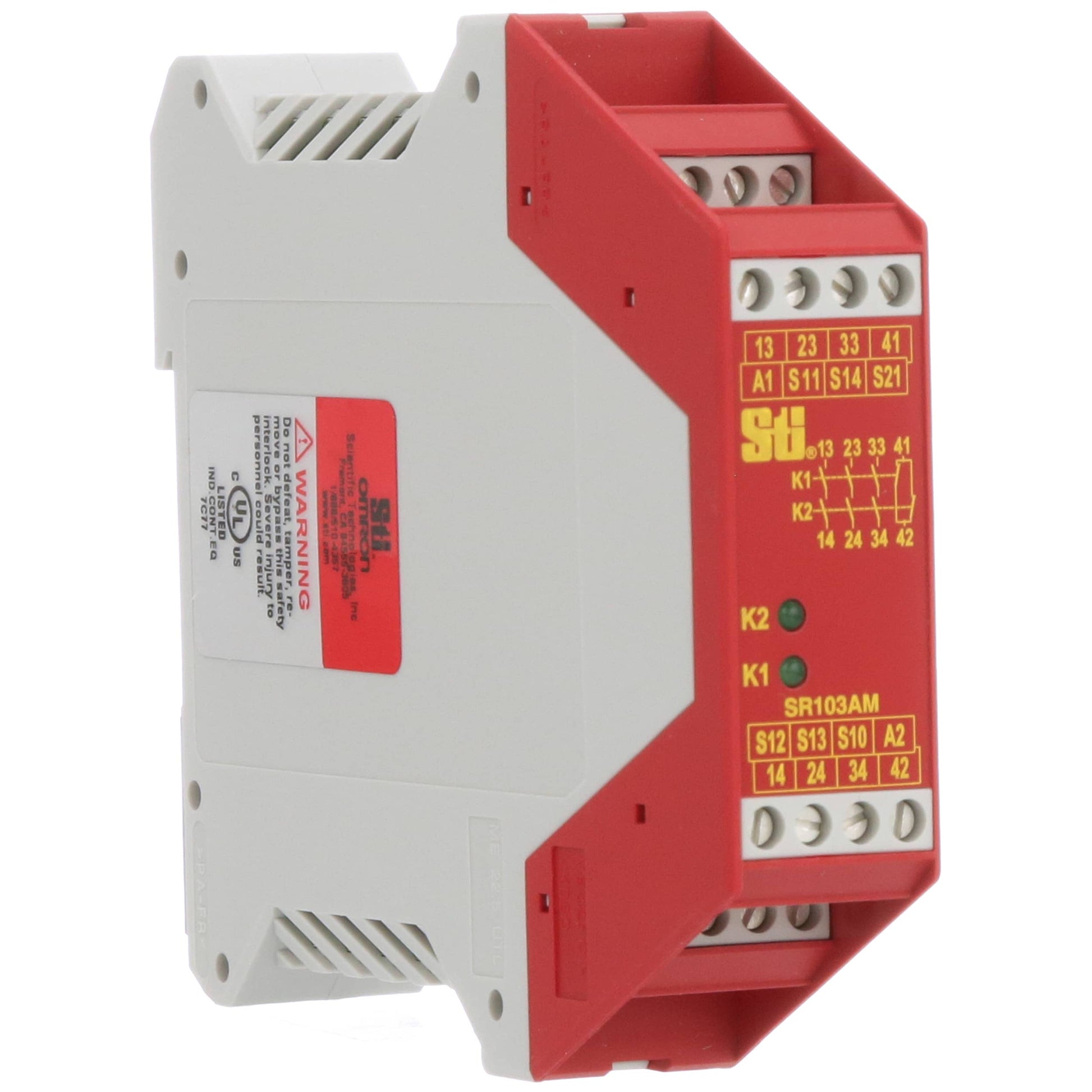

Omron SR103AM01 Relay SR103AM01

Description:

SR103AM01 SAFETY RELAY DIN RAIL AC/DC 24V 3A The SR103AM01 is a single-channel safety relay that provides fail-safe operation for machinery and equipment. It is typically used in applications requiring safety monitoring functions such as emergency stop circuits or safety door interlocks. The relay helps ensure compliance with safety standards by providing reliable switching and monitoring capabilities.

Technical Specifications:

• Model: SR103AM01
• Type: Safety Relay
• Contact Configuration:
• 1 x Normally Open (NO)
• 1 x Normally Closed (NC)
• Contact Rating:
• AC Load: 3A at 250V AC
• DC Load: 3A at 24V DC
• Operating Voltage: 24V DC
• Coil Consumption: Approximately 1.2W
• Response Time: Approximately 20 ms
• Insulation Resistance: 100 MΩ at 500V DC
• Dielectric Strength:
• 2,000V AC between contacts
• 4,000V AC between coil and contacts
• Operating Temperature Range: -10°C to 55°C
• Storage Temperature Range: -20°C to 65°C
• Dimensions (W x H x D): 22.5 x 73.5 x 75 mm
• Weight: Approximately 80 g
• Mounting Type: DIN rail mount
• Protection Rating: IP20 (terminals)
