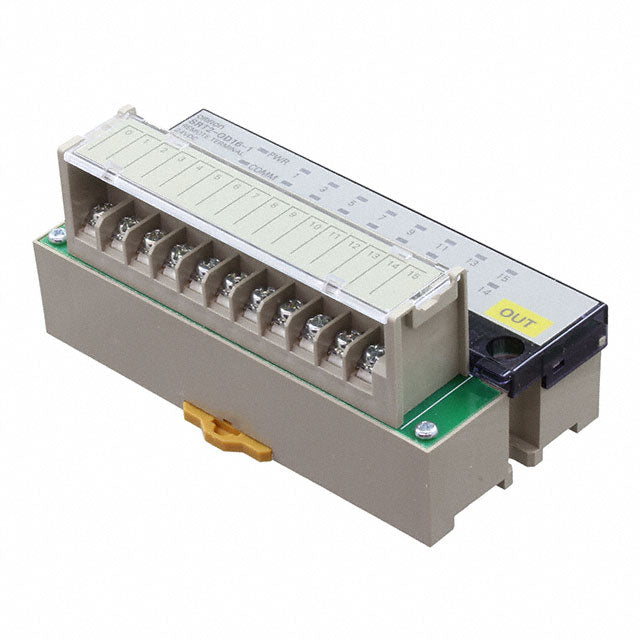

Omron SRT2-OD16-1 Remote Terminal SRT2OD161

Description:

The Omron SRT2-OD16-1 Remote Terminal is a transistor output remote I/O module used in Omron CompoBus/S network automation systems. Commonly installed in distributed control systems to provide remote digital output control for field devices across long-distance communication networks. Maintenance teams, OEMs, and system integrators use this module for replacement, retrofit, and expanding remote I/O capabilities in industrial automation systems.

Applications:

The Omron SRT2-OD16-1 Remote Terminal is used in industrial automation systems requiring distributed I/O control, including manufacturing lines, conveyor systems, packaging equipment, and process automation networks. It is ideal for applications that demand reliable remote output switching, reduced wiring complexity, and efficient communication over CompoBus/S networks.

Technical Specifications:

• Brand: Omron
• Part Number: SRT2-OD16-1
• Product Type: Remote I/O Terminal (Digital Output Module)
• Series: SRT2 (CompoBus/S)
• Number of Outputs: 16 transistor outputs
• Output Type: PNP (+ common)
• Rated Voltage: 24 V DC
• Output Current: 0.3 A per point
• Communication: CompoBus/S remote I/O network
• Mounting Type: DIN rail / screw mounting
• Connection Method: Screw terminals
• Isolation: Photocoupler isolation
• Operating Temperature: 0°C to 55°C
• Lifecycle Status: Discontinued
• Application: Distributed output control in industrial automation

Common Replacements:

• Omron DRT2-OD16-1
• Omron SRT2-OD16
• Omron DRT2-MD16
