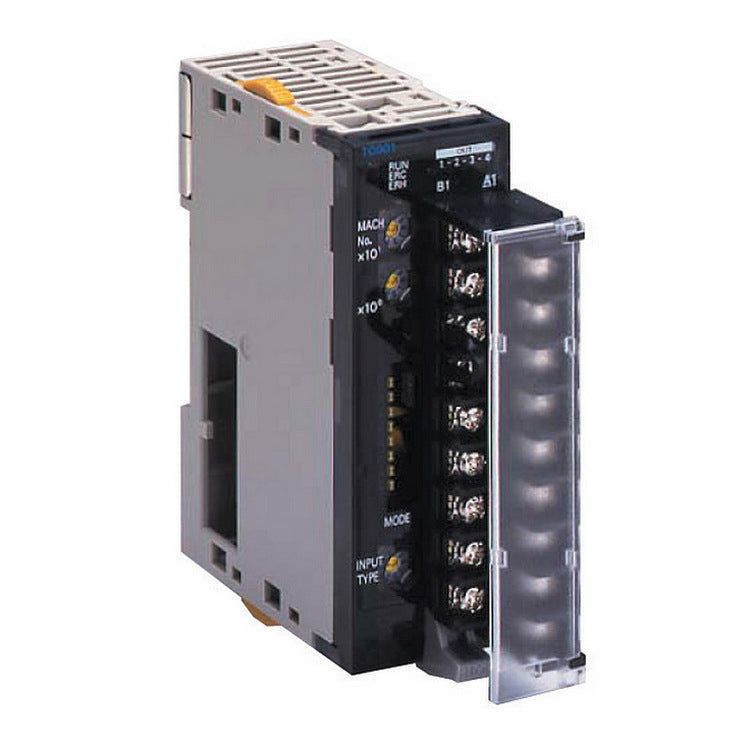

Omron Temperature Control Unit CJ1W-TC001 CJ1WTC001

Description:

The Omron CJ1W-TC001 temperature control unit is used in CJ1-series PLC systems for precise temperature regulation and monitoring in industrial automation processes. Commonly installed in heating systems, packaging machines, plastic molding equipment, and process control lines requiring accurate thermal management. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining stable temperature control in PLC-based systems.

Applications:

The Omron CJ1W-TC001 temperature control unit is used in industrial environments where precise temperature monitoring and control are critical. It is applied in injection molding machines, food processing equipment, packaging systems, and industrial ovens to regulate heating elements and maintain consistent process temperatures, ensuring product quality and operational efficiency.

Technical Specifications:

• Manufacturer: Omron
• Part Number: CJ1W-TC001
• Product Type: Temperature Control Unit
• Series: Omron CJ1 Series
• Number of Control Loops: 1 loop
• Input Type: Thermocouple / Platinum resistance thermometer (model dependent)
• Control Method: PID control
• Output Type: Transistor output / control output (model dependent)
• Temperature Range: Wide range depending on sensor type
• Accuracy: High precision temperature control
• Connection Type: Screw terminal
• Mounting Type: Rack mount (CJ1 PLC rack)
• Functions: Auto-tuning, alarm outputs, heater burnout detection
• Operating Temperature: 0°C to +55°C

Common Replacements:

• Omron CJ1W-TC002 Temperature Control Unit
• Omron CJ1W-TC101 Temperature Control Unit
• Omron NX-TC2405 Temperature Control Unit
