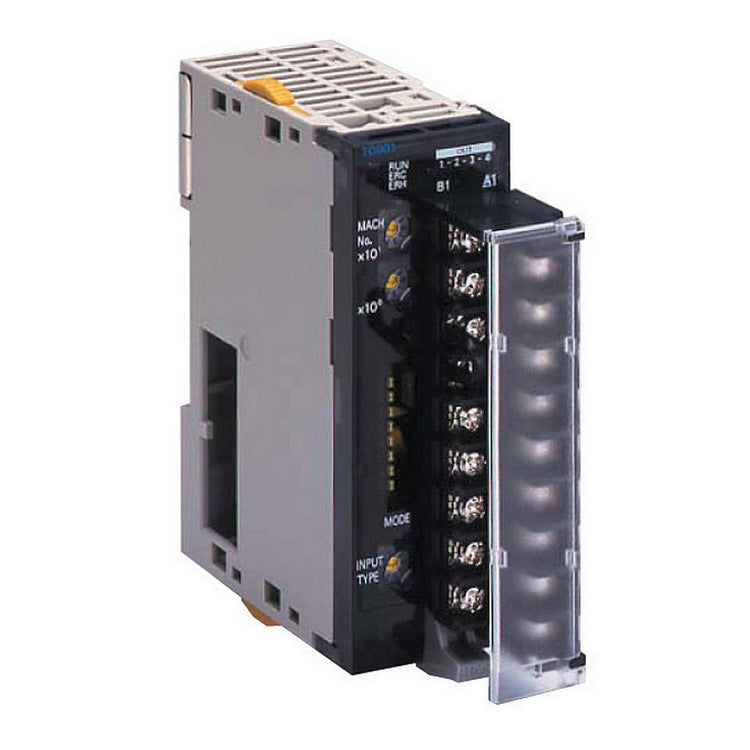

Omron CJ1W-TC001 Temperature Control Unit Thermocouple NPN 4 Loop CJ1WTC001

Description:

The Omron CJ1W-TC001 Temperature Control Unit Thermocouple NPN 4 Loop is used in CJ1 PLC systems to monitor and control temperature inputs from thermocouples for precise thermal management. Commonly installed in industrial ovens, injection molding machines, packaging equipment, and process control systems requiring multi-channel temperature regulation. Maintenance teams and system integrators use this part for replacement, retrofit, and expanding PLC temperature control capabilities in automation systems.

Applications:

The Omron CJ1W-TC001 temperature control unit is applied in industrial processes where accurate and stable temperature monitoring is critical. It is widely used in plastics processing, food production lines, semiconductor manufacturing, and heat treatment systems. This module enables multi-loop temperature control, improving process consistency and product quality in demanding environments.

Technical Specifications:

• Brand: Omron
• Part Number: CJ1W-TC001
• Product Type: Temperature Control Unit (PLC Expansion Module)
• Compatible PLC Series: Omron CJ1 series
• Input Type: Thermocouple inputs
• Number of Channels: 4-loop input
• Output Type: NPN transistor output
• Temperature Range: Depends on thermocouple type (K, J, etc.)
• Resolution: High-resolution temperature measurement
• Conversion Speed: High-speed multi-channel processing
• Mounting Type: CJ1 rack-mounted module
• Power Supply: Supplied from PLC backplane
• Features: Multi-loop control, stable temperature regulation, compact design

Common Replacements:

• Omron CJ1W-TC002
• Omron CJ1W-PTS51
• Omron NX-TC2405
