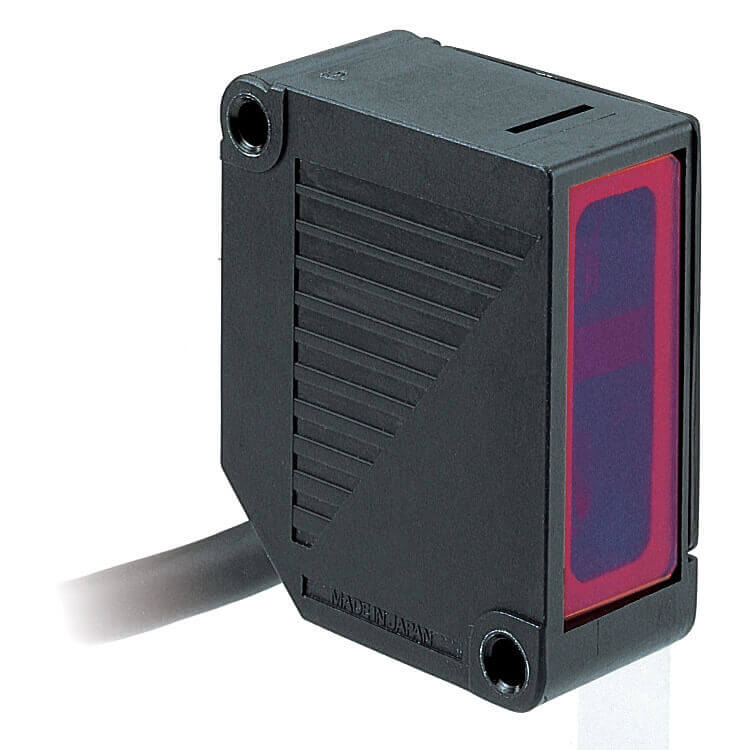

Omron ZX-LD40 Smart Sensor ZXLD40

Description:

ZXLD40 LASER DISPLACEMENT SENSOR HEAD DIFFUSE REFLECTIVE 40 MM (+/-10MM) SENSING DISTANCE 50UM SPOT SIZE PBT HOUSING MATERIAL IP50 The Omron ZX-LD40 is a high-performance laser displacement sensor designed for precise measurement and detection tasks in industrial automation. This sensor uses laser technology to accurately measure distances and detect objects, providing reliable performance for applications requiring high precision and long-range measurement.

Technical Specifications:

• Type: Laser Displacement Sensor
• Sensing Range: 10 to 400 mm (varies with the target surface and environmental conditions)
• Resolution: 1 µm
• Accuracy: ±0.2% of full scale (typical)
• Output Type: Analog (0-10 V or 4-20 mA) and Digital (IO-Link)
• Operating Voltage: 24 V DC
• Current Consumption: 80 mA max
• Response Time: 1 ms
• Protection Rating: IP67 (dust-tight and water-resistant)
• Temperature Range: 0°C to +50°C
• Body Material: Metal and plastic (for robustness in industrial settings)
• Connection Type: M12 Connector (4-pin)
