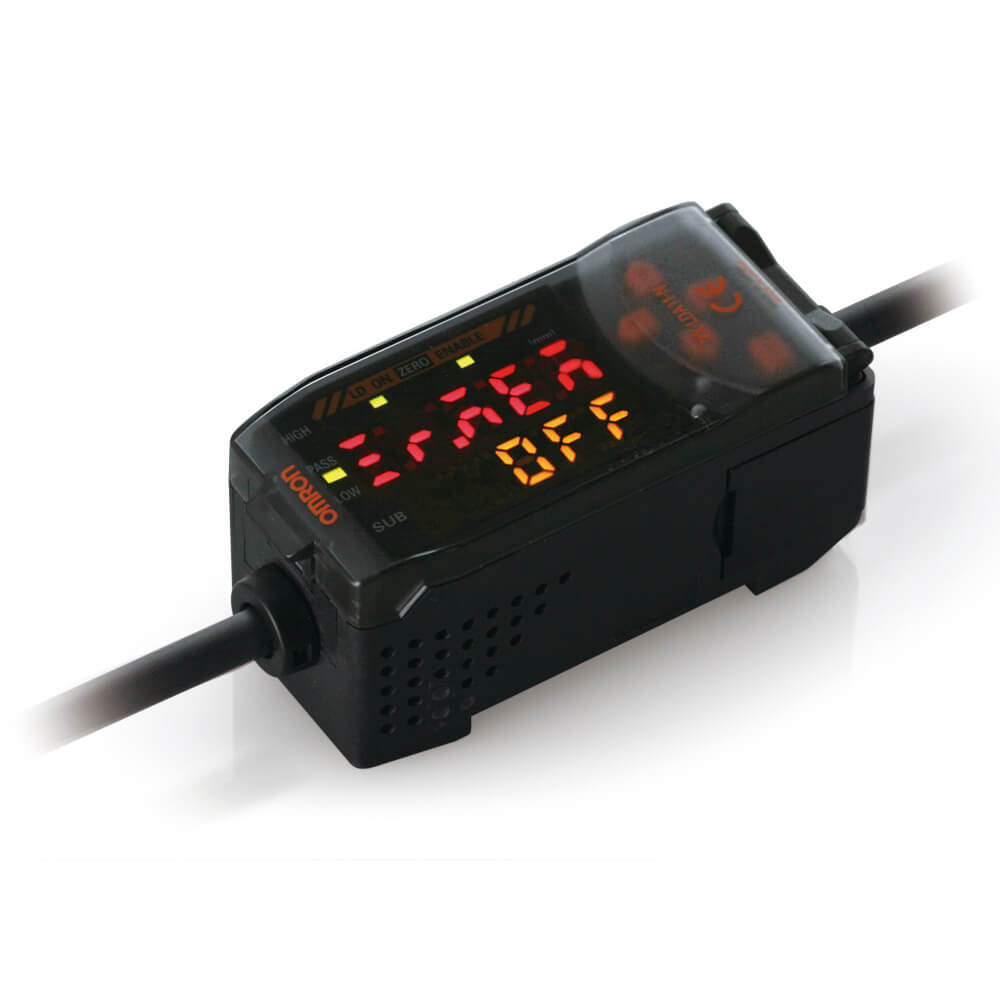

Omron ZX-LDA11-N ZXLDA11N

DESCRIPTION
The Omron ZX-LDA11-N is a high-precision smart sensor amplifier designed to work with Omron’s ZX series laser displacement and reflective sensors. This model features an NPN open-collector output and is engineered for DIN rail mounting, making it suitable for integration in control panels. It supports digital signal processing, enabling fast response and high-resolution measurements for displacement, position, or profile detection tasks. Its modular design allows for side-by-side mounting and easy system expansion.

TECHNICAL SPECIFICATIONS
Model Number: ZX-LDA11-N
Output Type: NPN open collector
Mounting: DIN rail
Display: 5-digit digital display with indicators
Power Supply Voltage: 12 to 24 VDC ±10%
Response Time: Selectable (0.15 ms, 1 ms, 10 ms, 100 ms)
Zero Reset: Manual or external input
External Control Inputs: Reset, Timing, Laser OFF
Applicable Sensors: Compatible with ZX-L series sensor heads
Temperature Range: Operating 0 to +50°C
Protection: IP40 (amplifier unit)
Dimensions: Approx. 15 mm (W) x 78 mm (H) x 70 mm (D)
