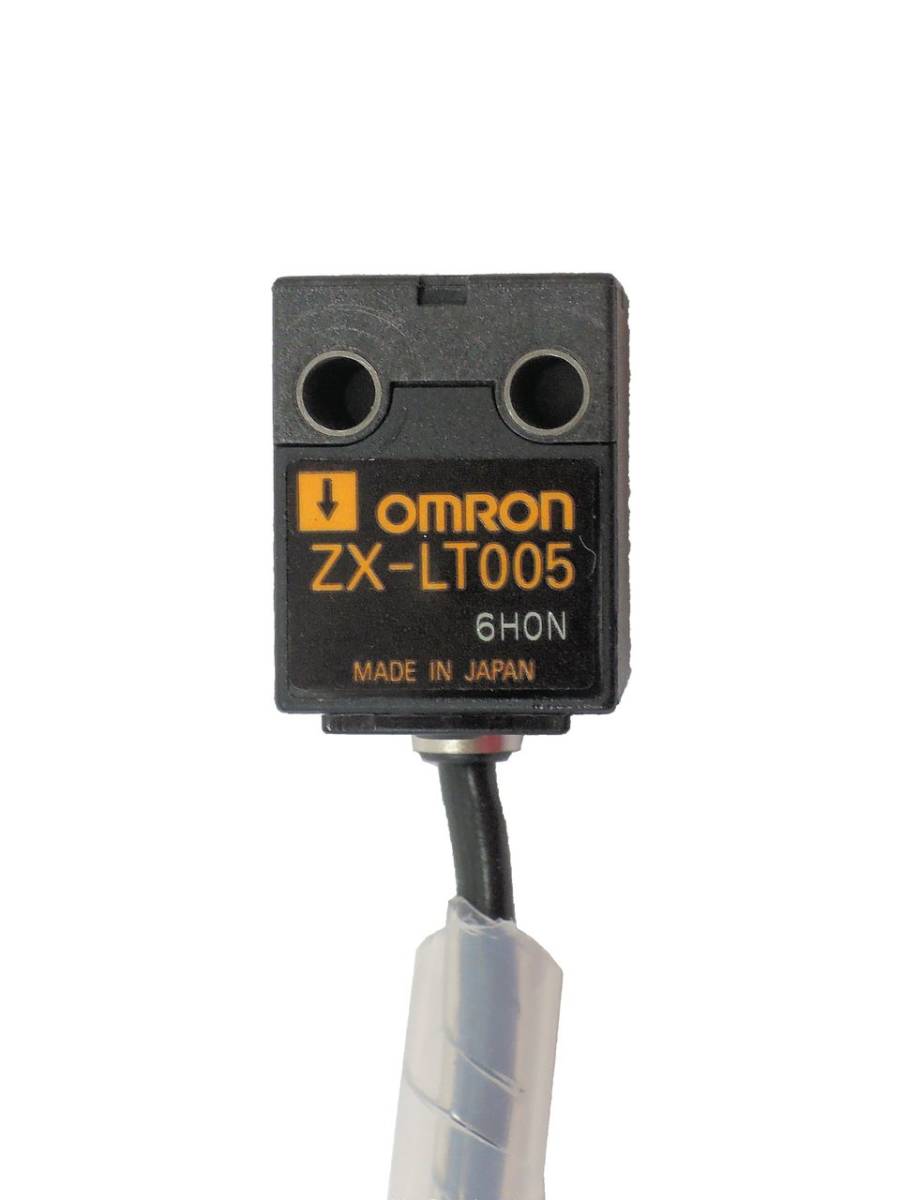

Omron ZX-LT005 ZXLT005

Description:

The Omron ZX-LT005 smart sensor head is used in ZX-series measurement systems for high-precision displacement and thickness measurement in industrial automation applications. Commonly installed in inspection equipment, semiconductor manufacturing systems, assembly lines, and precision machining processes requiring accurate non-contact measurement. Maintenance teams and system integrators use this part for replacement, retrofit, and maintaining reliable measurement accuracy in automated systems.

Applications:

The Omron ZX-LT005 sensor head is used in industrial environments where precise dimensional measurement and inspection are critical. It is applied in thickness measurement, height detection, positioning systems, and quality inspection processes to ensure consistent product dimensions and high accuracy within automated production and quality control systems.

Technical Specifications:

• Manufacturer: Omron
• Part Number: ZX-LT005
• Product Type: Laser Displacement Sensor Head
• Series: Omron ZX Series
• Measurement Type: Non-contact laser displacement measurement
• Measurement Range: ±5 mm (typical for model)
• Resolution: High-resolution measurement (micron-level)
• Light Source: Laser diode
• Output Compatibility: Requires ZX-series controller
• Response Time: High-speed measurement capability
• Mounting Type: Bracket mount
• Protection Rating: IP40
• Operating Temperature: 0°C to +50°C

Common Replacements:

• Omron ZX-LD30 Laser Displacement Sensor
• Omron ZX-LT010 Sensor Head
• Omron ZW-S40 Laser Displacement Sensor
