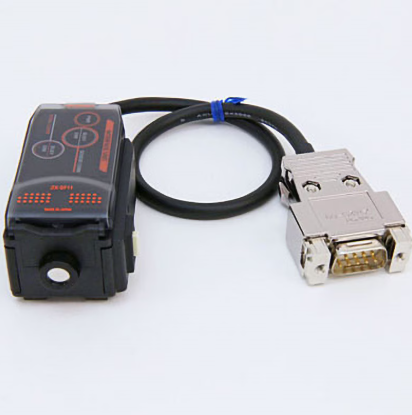

Omron ZX-SF11 Smart Sensor Interface Unit ZXSF11

Description:

ZXSF11 COMMUNICATIONS INTERFACE UNIT RS-232C (9-PIN D-SUB CONNECTOR) ZX SERIES 60 MA MAX COMPOWAY/F* 38,400 BPS DIELECTRIC STRENGHT: 1,000 VAC 50/60 HZ FOR 1 MIN LEAKAGE CURRENT: 10 MA MAX The Omron ZX-SF11 is a highly accurate and versatile laser sensor designed for precise distance measurement and object detection in various industrial applications. This sensor utilizes laser technology to provide reliable and high-resolution measurements, making it suitable for tasks that require fine accuracy and consistency.

Technical Specifications:

• Type: Laser Sensor
• Sensing Range: 30 to 500 mm (depends on the target and environmental conditions)
• Resolution: 1 µm
• Accuracy: ±0.1% of full scale (typical)
• Output Type: Analog (0-10 V) and Digital (IO-Link)
• Operating Voltage: 12-24 V DC
• Current Consumption: 100 mA max
• Response Time: 1 ms
• Protection Rating: IP67 (dust-tight and water-resistant)
• Temperature Range: 0°C to +50°C
• Body Material: Metal and plastic (designed for industrial durability)
• Connection Type: M12 Connector (4-pin)
