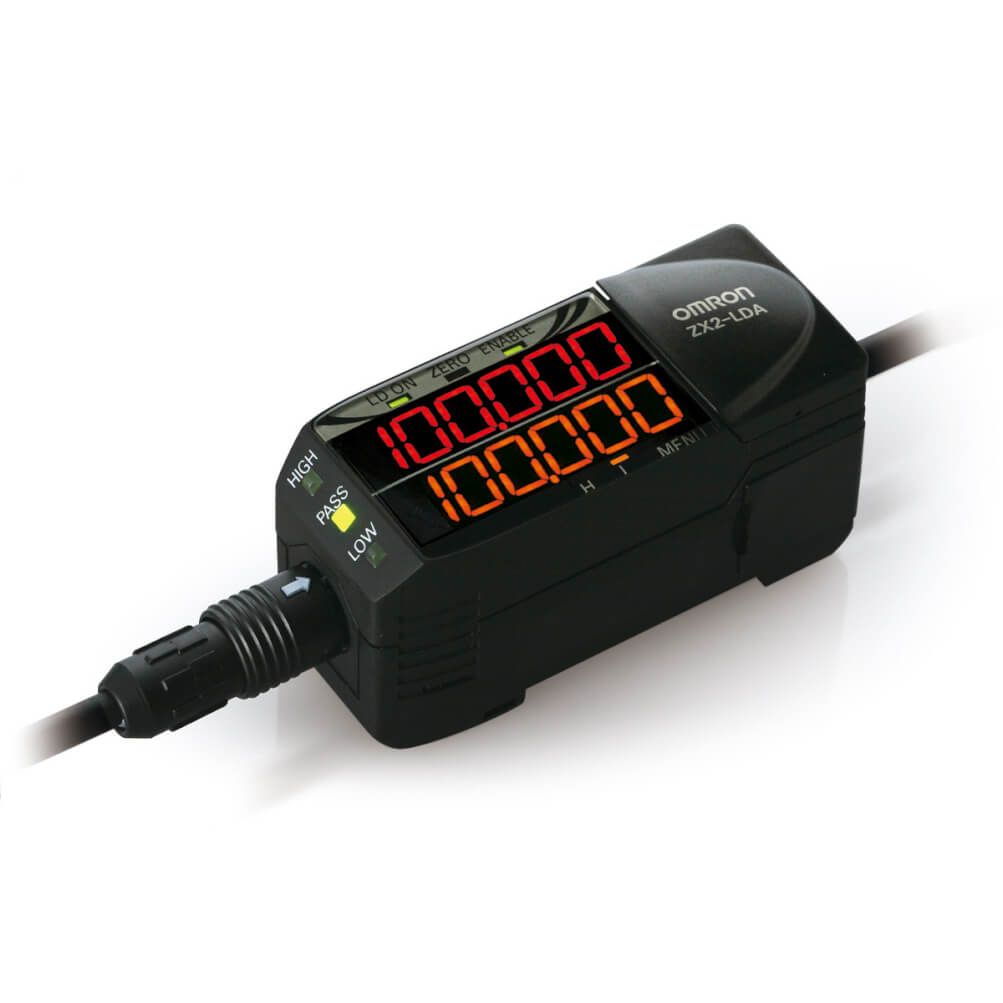

Omron ZX2-LDA11 Laser Displacement Sensor ZX2LDA11

DESCRIPTION
The Omron ZX2-LDA11 is a high-performance laser displacement sensor controller designed for use with ZX2 series sensor heads. It features advanced signal processing for accurate, high-speed, non-contact measurements of distance, thickness, and surface profiles. This model supports NPN output, making it suitable for integration into a wide range of factory automation and quality inspection systems.

TECHNICAL SPECIFICATIONS
Model Number: ZX2-LDA11
Series: ZX2
Type: Laser Displacement Sensor Controller
Output Type: NPN
Compatible Sensor Heads: ZX2-LDxx series
Sampling Cycle: 30 µs (high-speed mode)
Display: Digital LED display with measurement values and status indicators
Analog Output: 1–5 V (scalable), or 4–20 mA (selectable)
Judgment Outputs: 2 (HIGH/OK/LOW)
Control Inputs: Laser ON, Reset, Bank Select, etc.
Communication: RS-232C
Power Supply: 24 VDC ±10%, 250 mA max
Ambient Temperature: 0 to +50°C
Enclosure Rating: IP20 (controller body)
Mounting: DIN rail
Dimensions: 35 mm (W) × 100 mm (H) × 90 mm (D)
Weight: Approx. 250 g
Manufacturer: Omron Corporation
