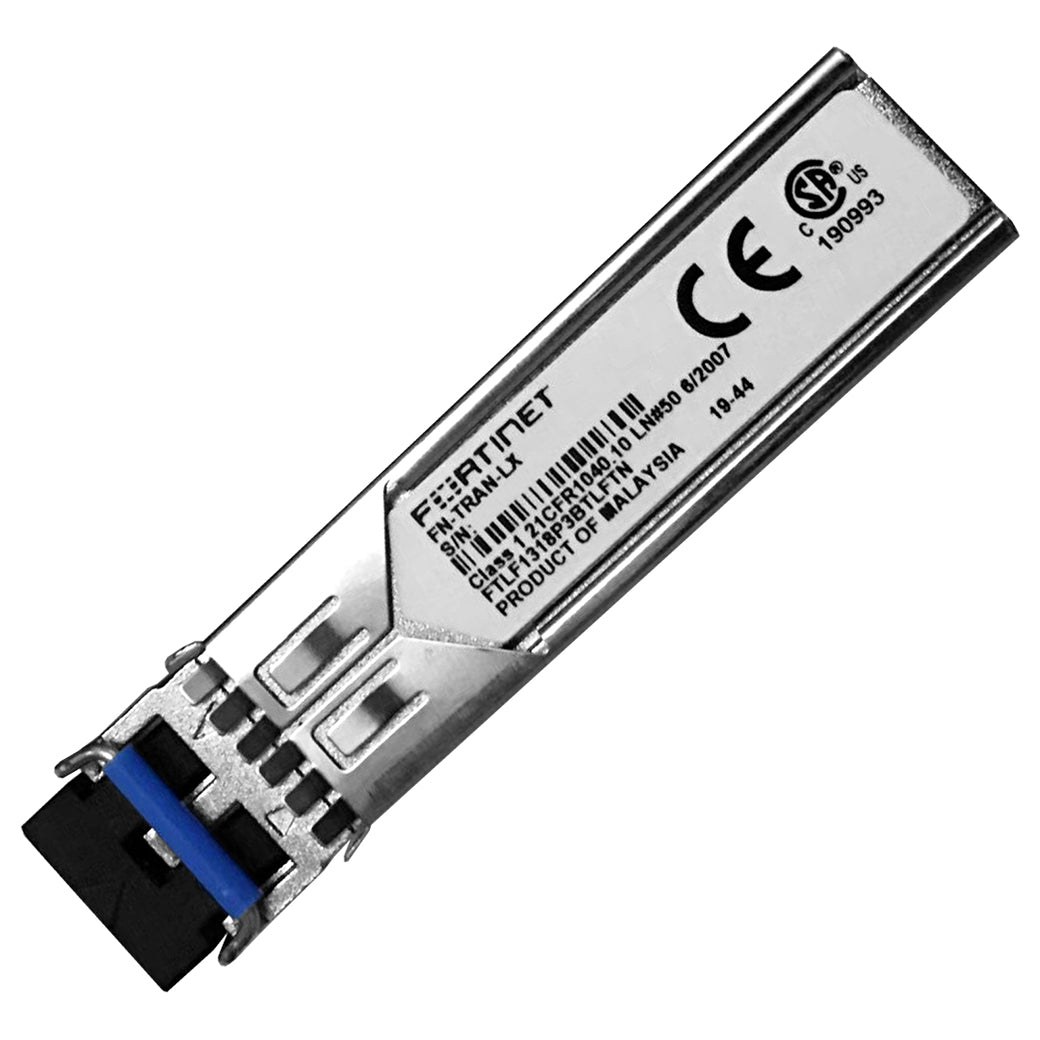

FORTINET FN-TRAN-LX - 1000Base-LX/LH Single Mode Optic 10KM 1310nm

Description:

The Fortinet FN-TRAN-LX 1000Base-LX/LH SFP Transceiver is used in fiber optic networking systems for Gigabit Ethernet data transmission over long distances. Commonly installed in network switches, firewalls, routers, and enterprise fiber infrastructure. Maintenance teams, network administrators, and system integrators use this transceiver for fiber connectivity, system expansion, replacement, and reliable long-distance data communication.

Applications:

The Fortinet FN-TRAN-LX optical transceiver is used in environments such as enterprise networks, data centers, and telecom infrastructure to provide stable Gigabit Ethernet connectivity over single-mode fiber, enabling long-distance communication between switches, firewalls, and routers with high reliability and low signal loss.

Technical Specifications:

• Manufacturer: Fortinet (Finisar-compatible optics)
• Model / Part Number: FN-TRAN-LX
• Product Type: SFP Optical Transceiver (1000Base-LX/LH)
• Form Factor: SFP (Small Form-factor Pluggable)
• Data Rate: 1 Gbps (1.25 Gbps nominal)
• Wavelength: 1310 nm
• Transmission Distance: Up to 10 km
• Fiber Type: Single-mode fiber (SMF)
• Connector Type: LC duplex
• Interface Standard: IEEE 802.3z 1000BASE-LX
• Hot-Swappable: Yes
• Digital Optical Monitoring (DOM): Supported (model dependent)
• Power Consumption: < 1 W typical
• Compliance: MSA, Class 1 laser safety

Common Replacements:

• Fortinet FN-TRAN-LX-AO
• Cisco GLC-LH-SMD
• Finisar FTLF1318P3BTL
