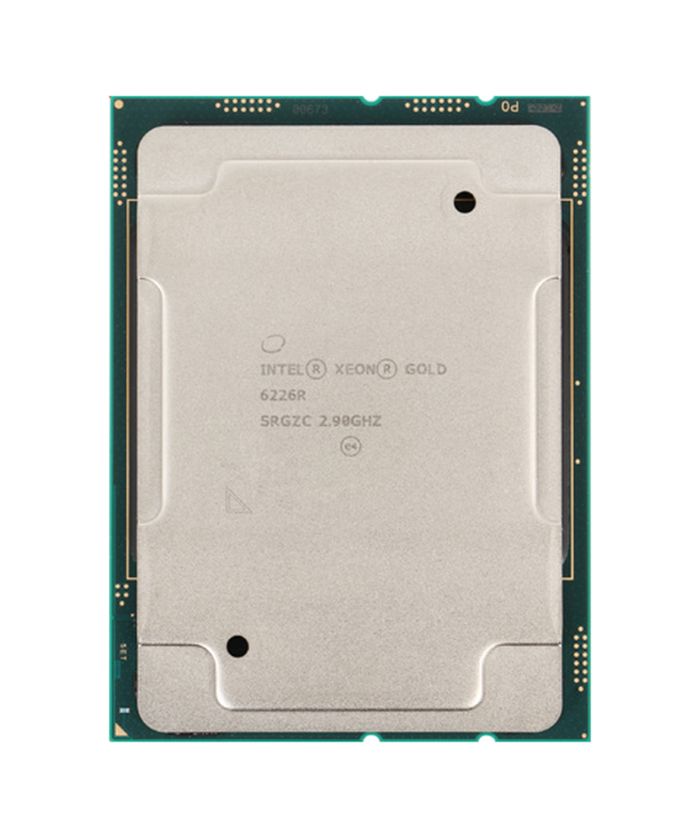

Gen10 Intel Xeon-Gold 6226R Processor Kit SRGZC

Description:

The Intel Xeon Gold 6226R (spec code: SRGZC) is a high-performance server processor designed for data-intensive workloads and enterprise-class servers. Part of the 2nd Gen Intel Xeon Scalable family, it features 16 cores and 32 threads with a base clock of 2.90 GHz and Turbo Boost up to 3.90 GHz. Built for platforms that demand scalability and reliability, the 6226R supports six-channel DDR4 memory and dual UPI links for enhanced communication across CPUs. It is ideal for use in HPE ProLiant DL380 Gen10 and other Socket P (LGA3647) server systems.

TECHNICAL SPECIFICATIONS

Processor Model: Intel Xeon Gold 6226R
Spec Code: SRGZC
Cores / Threads: 16 cores / 32 threads
Base Frequency: 2.90 GHz
Max Turbo Frequency: 3.90 GHz
L3 Cache: 22 MB
Socket Type: FCLGA3647 (Socket P)
TDP: 150W
Instruction Set: 64-bit, AVX-512
Memory Support: 6-channel DDR4-2933 ECC Registered
Max Memory Bandwidth: 140.8 GB/s
UPI Links: 2 × 10.4 GT/s
Virtualization: Intel VT-x, VT-d, EPT support
Security Features: Intel AES-NI, Secure Key, Boot Guard, SGX
