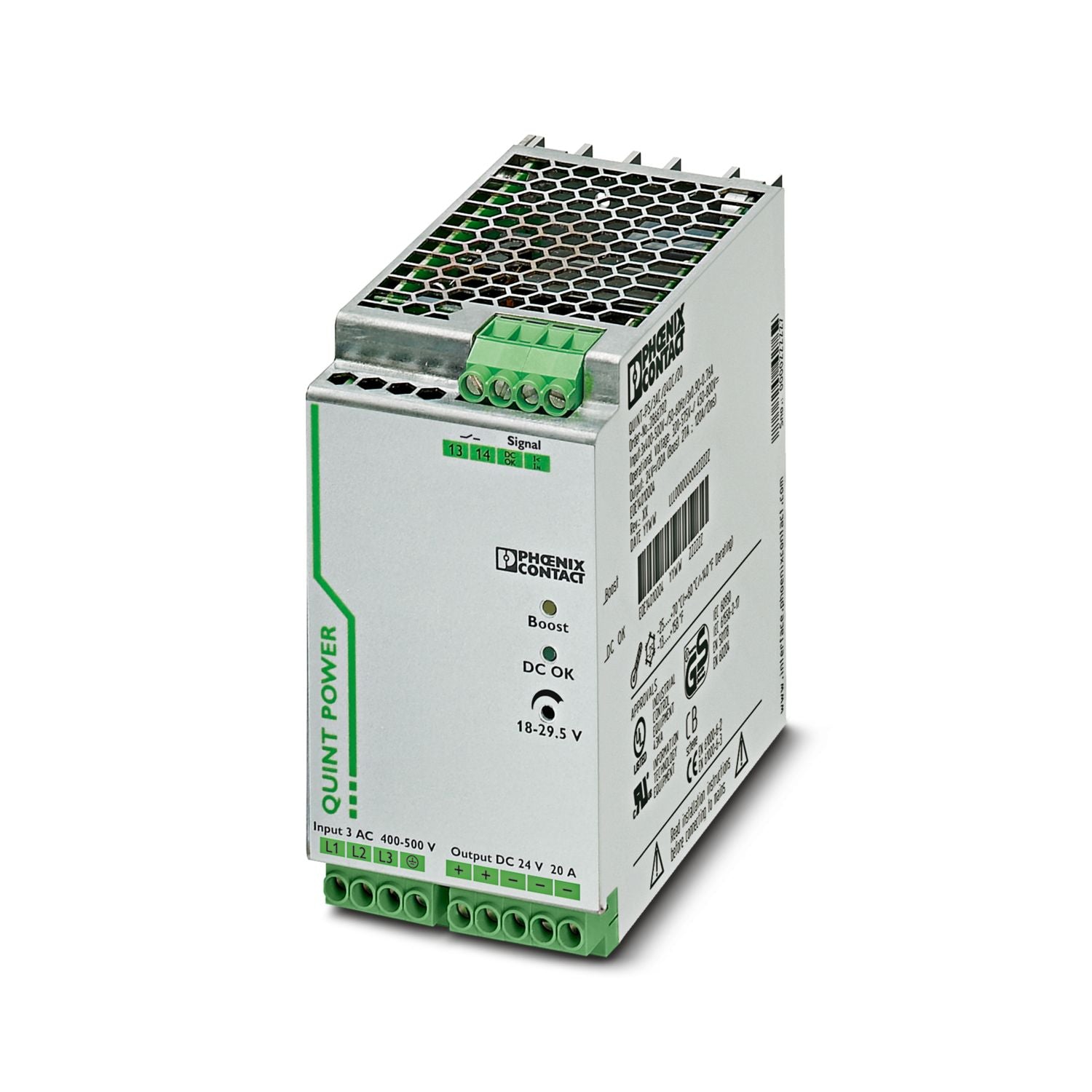

Phoenix 2866792 QUINT- PS /3AC/24DC/20 Power Supply Unit QUINTPS/3AC/24DC/20

Description:

The Phoenix Contact QUINT-PS/3AC/24DC/20 Power Supply Unit (2866792) is used in industrial automation systems to provide a stable and regulated 24 V DC power source from a three-phase AC input for control circuits, field devices, PLCs, sensors, and communication modules. Commonly installed in control panels, PLC racks, drive cabinets, and distributed automation systems where reliable DC power is required for consistent operation of automation components. Maintenance teams and system integrators use this power supply for panel upgrades, retrofit installations, replacement of failed power modules, and ensuring dependable power delivery in three-phase environments.

Applications:

The Phoenix QUINT-PS/3AC/24DC/20 power supply is commonly used in industrial automation environments including machine control panels, material handling systems, manufacturing production lines, water and wastewater facilities, HVAC control panels, and process automation systems where regulated 24 V DC power supports logic controllers, actuators, and instrumentation.

Technical Specifications:

• Manufacturer: Phoenix Contact
• Model: QUINT-PS/3AC/24DC/20
• Part Number: 2866792
• Product Type: Three-Phase Industrial Power Supply
• Input Voltage: Three-phase AC input (model dependent rating)
• Output Voltage: 24 V DC regulated
• Output Current: 20 A DC
• Power Rating: 480 W (24 V × 20 A)
• Regulation: Tight voltage regulation for automation systems
• Protection Features: Overload, short-circuit, and overvoltage protection
• Mounting Type: DIN-rail mountable (standard industrial format)
• Efficiency: Industrial high-efficiency conversion
• Operating Temperature Range: Industrial rated conditions
• Application Category: DC power source for automation and control systems
• Compliance: Designed for industrial safety and EMC standards (model dependent)

Common Replacements:

• Phoenix Contact QUINT-PS/3AC/24DC/40 (higher current capacity)
• Phoenix Contact QUINT-PS/1AC/24DC/20 (single-phase alternative)
• Mean Well RSP-480-24 Industrial Power Supply
