Phoenix

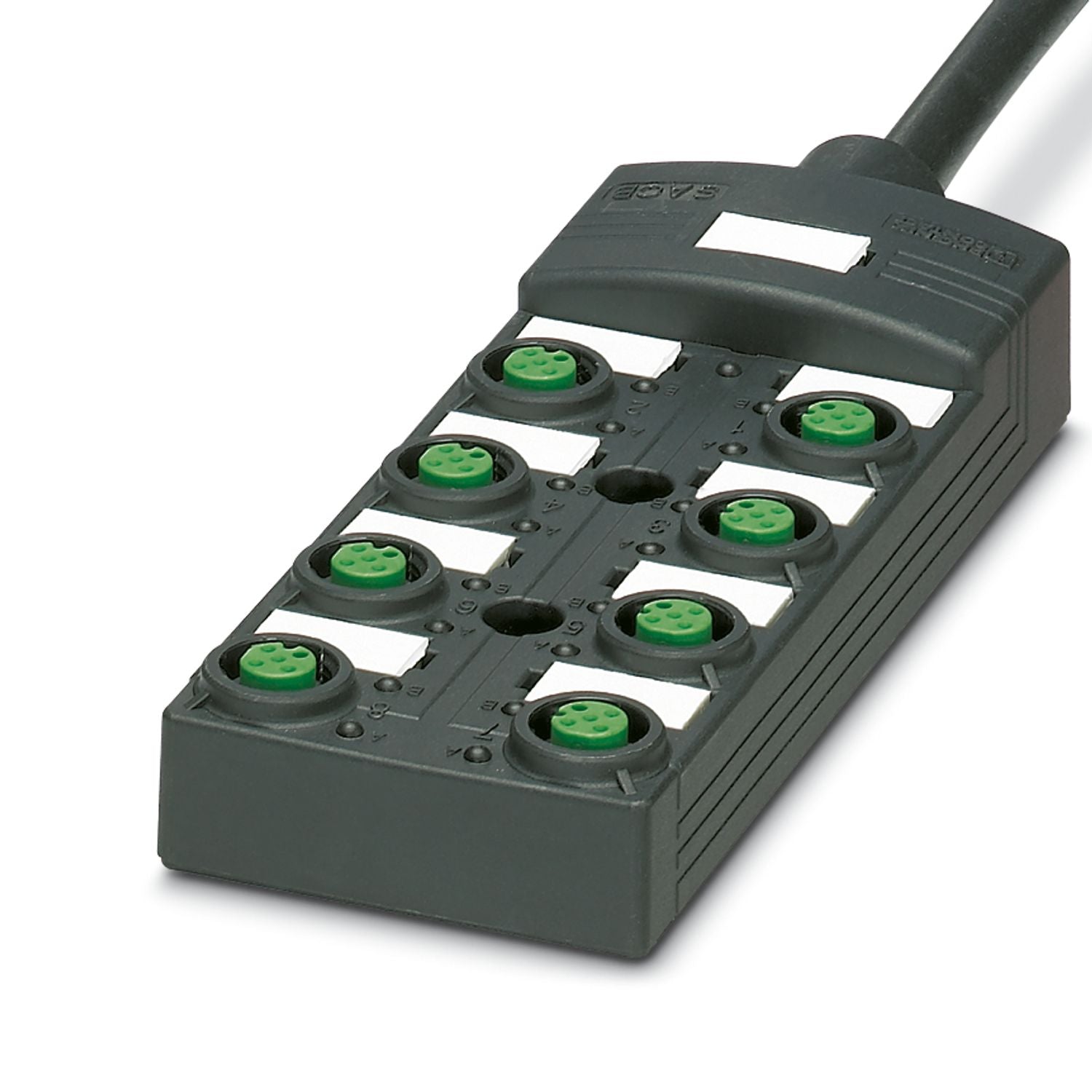

Phoenix SACB-8/16-L-5,0PUR SENSOR/ACTUATOR 8 SLOTS 5 POSIT, #161828

Phoenix SACB-8/16-L-5,0PUR SENSOR/ACTUATOR 8 SLOTS 5 POSIT, #161828

Condition
Regular price $263.00
Regular price Sale price $263.00
Sale Sold out
PayPal Google Pay Visa MasterCard Amex Venmo

Description:

SACB816L50PURSCO SENSOR/ACTUATOR BOX CONNECTION METHOD: M12-SPEEDCON-SOCKET METAL NUMBER OF SLOTS: 8 NUMBER OF POSITIONS: 5 SLOT ASSIGNMENT: DOUBLE STATUS DISPLAY: YES PNP MASTER CABLE CONNECTION: FIXED CONNECTION 180 PUR/PVC CABLE LENGTH: 5 M SHIELDING: NO The Phoenix SACB-8/16-L-5,0PUR (161828) is a sensor/actuator junction box designed to provide efficient and organized connectivity for multiple field devices in industrial automation systems. This junction box features 8 slots, each with 5 positions, allowing for the connection of up to 16 sensors or actuators. The durable PUR (Polyurethane) cable ensures long-lasting performance even in harsh industrial environments. With its IP67-rated protection, the SACB-8/16-L-5,0PUR is ideal for applications where reliability and resistance to dust and water are essential, such as in machinery and factory automation.

Technical Specifications:

  • Model Number: SACB-8/16-L-5,0PUR
  • Type: Sensor/Actuator Junction Box
  • Number of Slots: 8
  • Positions per Slot: 5
  • Cable Length: 5.0 meters (16.4 feet)
  • Cable Material: PUR (Polyurethane) sheath
  • Rated Voltage: 24V DC
  • Rated Current: 4A per slot
  • Protection Rating: IP67 (dust-tight and waterproof)
  • Operating Temperature Range: -25°C to 80°C (-13°F to 176°F)
  • Connection Type: M12 connectors for sensors/actuators
  • Mounting: Screw mountable on flat surfaces
  • Housing Material: Polyamide (PA) for durability
  • Certifications: CE, RoHS compliant
  • Weight: Approximately 0.5 kg (1.1 lbs)
