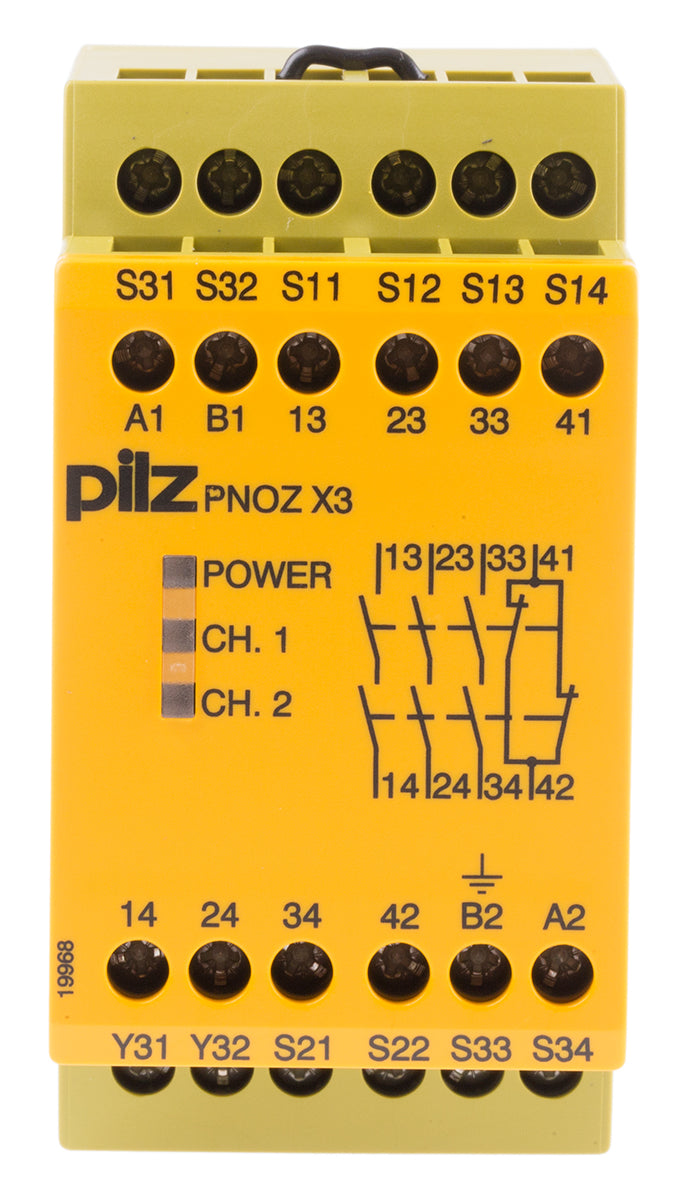

PILZ 774310 PNOZ X3 Safety Relay 774310

Description:

The PILZ 774310 PNOZ X3 is a compact and versatile safety relay designed to ensure the safe operation of machinery and equipment. As part of the PNOZ X series, this relay provides reliable safety monitoring for emergency stop circuits, safety doors, and other critical safety functions. It features three safety contacts and is capable of achieving category 4 safety according to ISO 13849-1. With its user-friendly design and LED status indicators, the PNOZ X3 simplifies installation and diagnostics, making it ideal for use in a wide range of industrial applications where safety is paramount.

Technical Specifications:

• Model Number: 774310 PNOZ X3
• Type: Safety relay
• Safety Function: Emergency stop, safety door monitoring, and other safety applications
• Number of Safety Contacts: 3 (2 NO + 1 NC)
• Safety Category: Category 4 (ISO 13849-1)
• Safety Integrity Level (SIL): SIL 3 (IEC 61508)
• Supply Voltage: 24 V DC
• Output Contacts: 2 x 3-pole NO, 1 x 1-pole NC
• Contact Rating: 4 A at 250 V AC / 4 A at 24 V DC
• Response Time: < 20 ms
• Test Inputs: Yes, for manual testing
• Indicators: LED indicators for status and diagnostics
• Mounting: DIN rail (35 mm)
• Protection Rating: IP20
• Operating Temperature Range: -10°C to +55°C (14°F to 131°F)
• Dimensions: 22.5 mm x 100 mm x 114 mm (W x H x D)
• Certifications: CE, cULus
