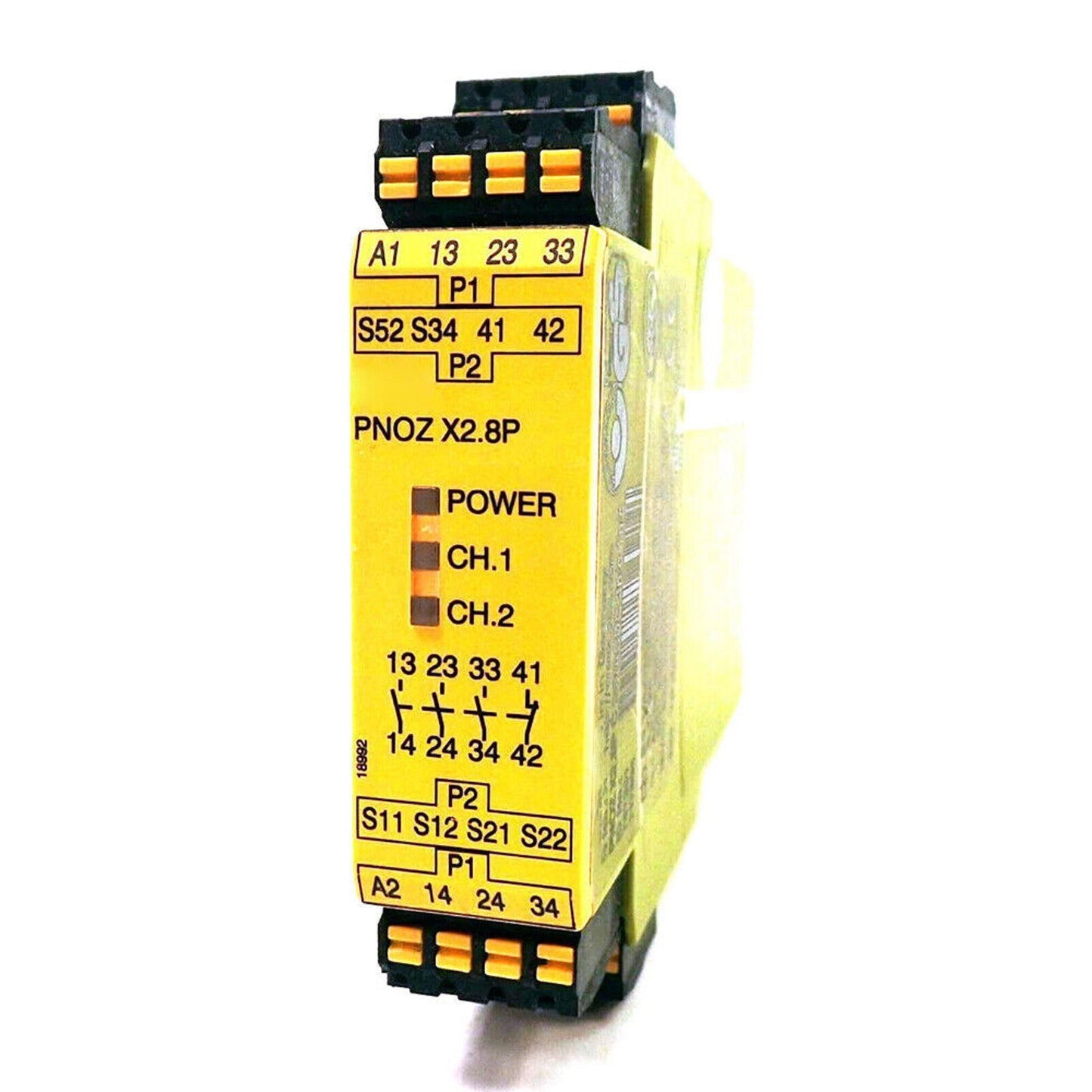

PILZ 777301 PNOZ X2.8P 24VACDC 3n/o 1n/c Safety Relay 777301

Description:

The PILZ 777301 PNOZ X2.8P 24 VAC/DC 3 N/O 1 N/C Safety Relay is used in industrial safety control systems to monitor safety devices such as emergency stops, safety gates, and protective interlocks while providing reliable safety output switching. Commonly installed in machine safety cabinets, automated production systems, and control panels where dependable safety logic and controlled shutdown sequences are required to protect personnel and equipment. Safety engineers, maintenance teams, and system integrators use this relay for safety circuit upgrades, replacement of failed safety relays, retrofit installations, and ensuring compliance with industrial safety standards.

Applications:

The PILZ PNOZ X2.8P safety relay is commonly used in manufacturing production lines, robotic workcells, press and forming lines, packaging machinery, material handling systems, and guarded machine enclosures where monitored dual-channel safety inputs and safe output control help protect operators and minimize risk in automated industrial environments.

Technical Specifications:

• Manufacturer: PILZ
• Model: PNOZ X2.8P
• Part Number: 777301
• Product Type: Safety Relay Module
• Supply Voltage: 24 VAC/DC
• Contact Configuration: 3 normally open (N/O), 1 normally closed (N/C)
• Safety Inputs: Dual-channel monitored safety inputs
• Safety Outputs: Safety relay outputs for controlled machine stop
• Function: Safety device monitoring and controlled shutdown logic
• Mounting Type: DIN rail mounted module
• Indicators: Status LEDs for power and channel operation
• Application Category: Machine safety, E-stop, interlock monitoring
• Operating Temperature Range: Industrial-rated conditions
• Protection Rating: Installed within safety control enclosure

Common Replacements:

• PILZ 777302 PNOZ X2.8 Safety Relay
• PILZ 750104 PNOZ S4 Safety Relay
• Siemens 3TK28 Safety Relay Module
