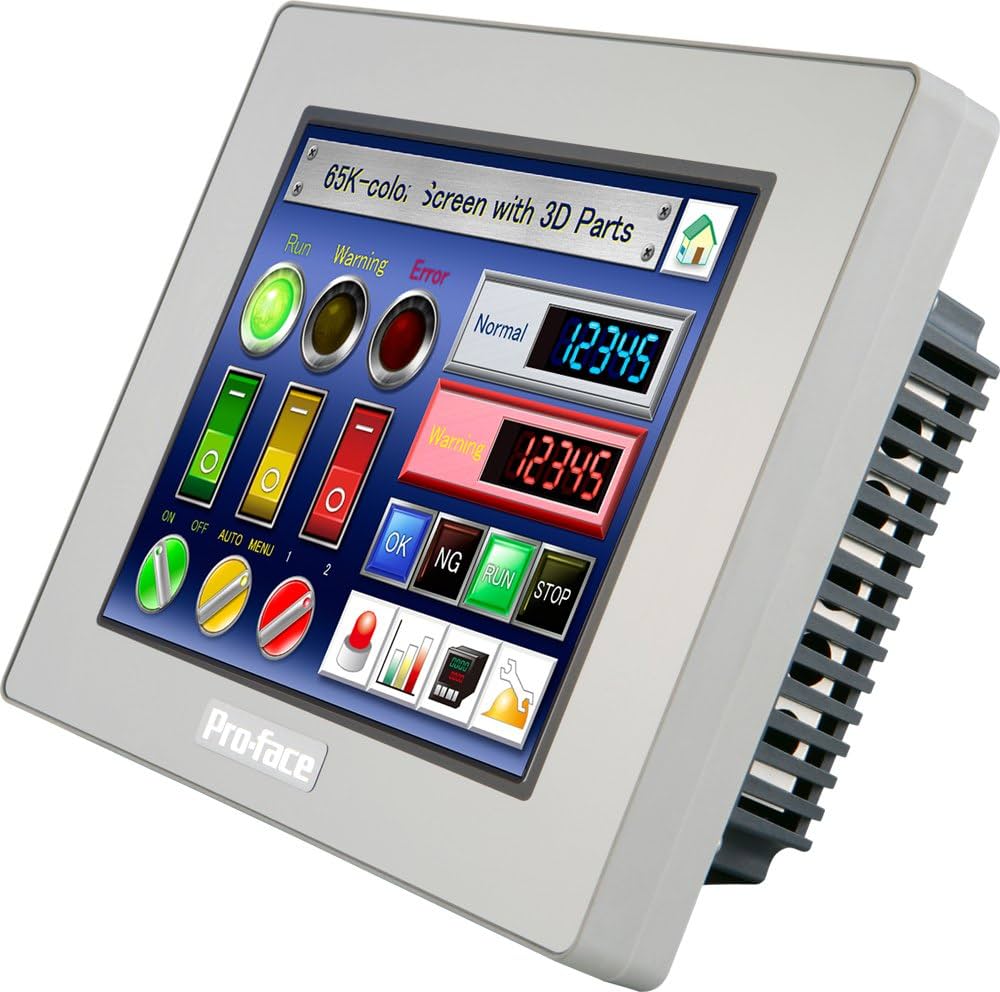

Pro-face PFXGM4301TAD GP-4301TM TOUCH SCREEN 4.7" 65K COLOR TFT

Description:

The Pro-face PFXGM4301TAD is a 5.7-inch modular touchscreen HMI from the GP4000M Series, engineered for industrial environments with limited panel space. It features a QVGA TFT LCD with resistive touch input and supports versatile connectivity through Ethernet, serial, and USB ports. Its modular design allows for simple 22 mm panel mounting, while the IP65F-rated front panel ensures durability in harsh conditions. Ideal for factory automation, the PFXGM4301TAD delivers efficient monitoring and control of machinery and processes.

TECHNICAL SPECIFICATIONS:

Manufacturer: Pro-face (Schneider Electric)
Series: GP4000M
Model Number: PFXGM4301TAD
Display Size: 5.7 inches
Display Type: TFT Color LCD
Resolution: 320 x 240 (QVGA)
Display Colors: 65,536 colors
Touchscreen Type: Analog resistive
Backlight: White LED, 50,000 hours lifespan
Application Memory: 8 MB Flash EPROM
Logic Program Capacity: Approx. 132 KB
Backup Memory: 128 KB nvSRAM
Serial Interface: 1 x RS-232C/422/485 (D-Sub 9-pin)
Ethernet Port: 1 x 10/100Base-TX (RJ-45)
USB Ports: 1 x Type-A (device), 1 x Mini-B (programming)
Input Voltage: 24 VDC (range: 20.4–28.8 VDC)
Power Consumption: Max 6.8 W
Mounting Method: 22 mm panel cutout (quick-mount)
Rear: IP20
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 10% to 90% RH, non-condensing
Cooling Method: Natural air circulation
Certifications: UL, CE, RoHS, ATEX, DNV
Dimensions (Front Module): 163 x 129.4 x 17.5 mm
Dimensions (Rear Module): 118 x 98.1 x 30.6 mm
Weight: Approx. 0.62 kg (1.36 lb)
