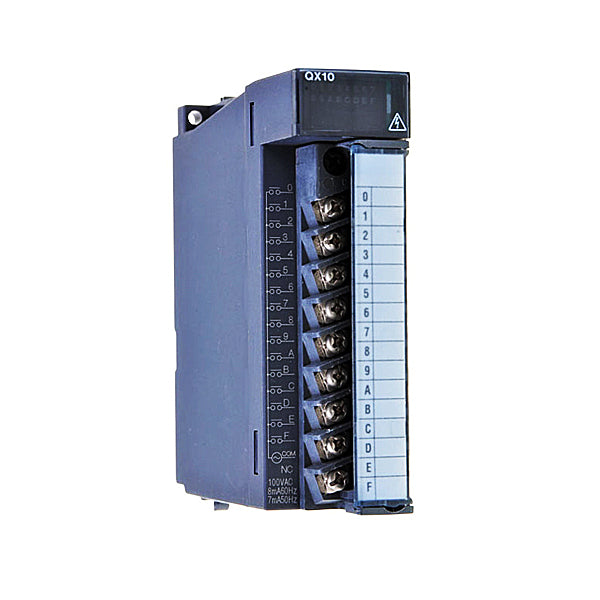

Mitsubishi QX10 PLC Digital Input Module, 16 Points, 100-120 VAC Q Series

Description:

The Mitsubishi QX10 is a digital input module from the MELSEC-Q series designed to interface 100–120 VAC field signals with PLC systems. Commonly installed in PLC racks within control panels, it enables reliable acquisition of discrete AC input signals from switches, relays, and sensors. Maintenance teams, system integrators, and OEMs use this module for distributed input monitoring, system expansion, and replacement of legacy input modules in industrial automation environments.

Applications:

This digital input module is used in industrial automation systems requiring AC signal monitoring. Typical applications include conveyor systems, manufacturing lines, packaging equipment, and process control systems where 100–120 VAC input devices such as pushbuttons, limit switches, and relays must be reliably interfaced with a PLC for control and monitoring.

Technical Specifications:

• Manufacturer Part Number (MPN): QX10
• Product Type: PLC Digital Input Module
• Series: MELSEC-Q
• Number of Input Points: 16
• Input Type: AC input module
• Rated Input Voltage: 100–120 VAC, 50/60 Hz
• Rated Input Current: Approx. 7–8 mA per point
• Input Configuration: 16 points / common
• Isolation Method: Photocoupler isolation
• Response Time: ~15 ms (OFF→ON), ~20 ms (ON→OFF)
• Input Impedance: ~12–15 kΩ
• Occupied I/O Points: 16
• Internal Current Consumption: ~0.05 A (5 V DC)
• Wiring Type: Screw terminal block
• Mounting Type: MELSEC-Q rack mount
• Dimensions: Approx. 27.4 × 98 × 90 mm
• Weight: Approx. 0.17 kg
• Operating Temperature: 0 °C to 55 °C
• Certifications: CE, UL, cUL

Common Replacements:

• Mitsubishi QX40 (DC input module alternative)
• Mitsubishi QX28 (higher voltage AC input variant)
• Allen-Bradley 1756-IA16 (ControlLogix AC input module)
