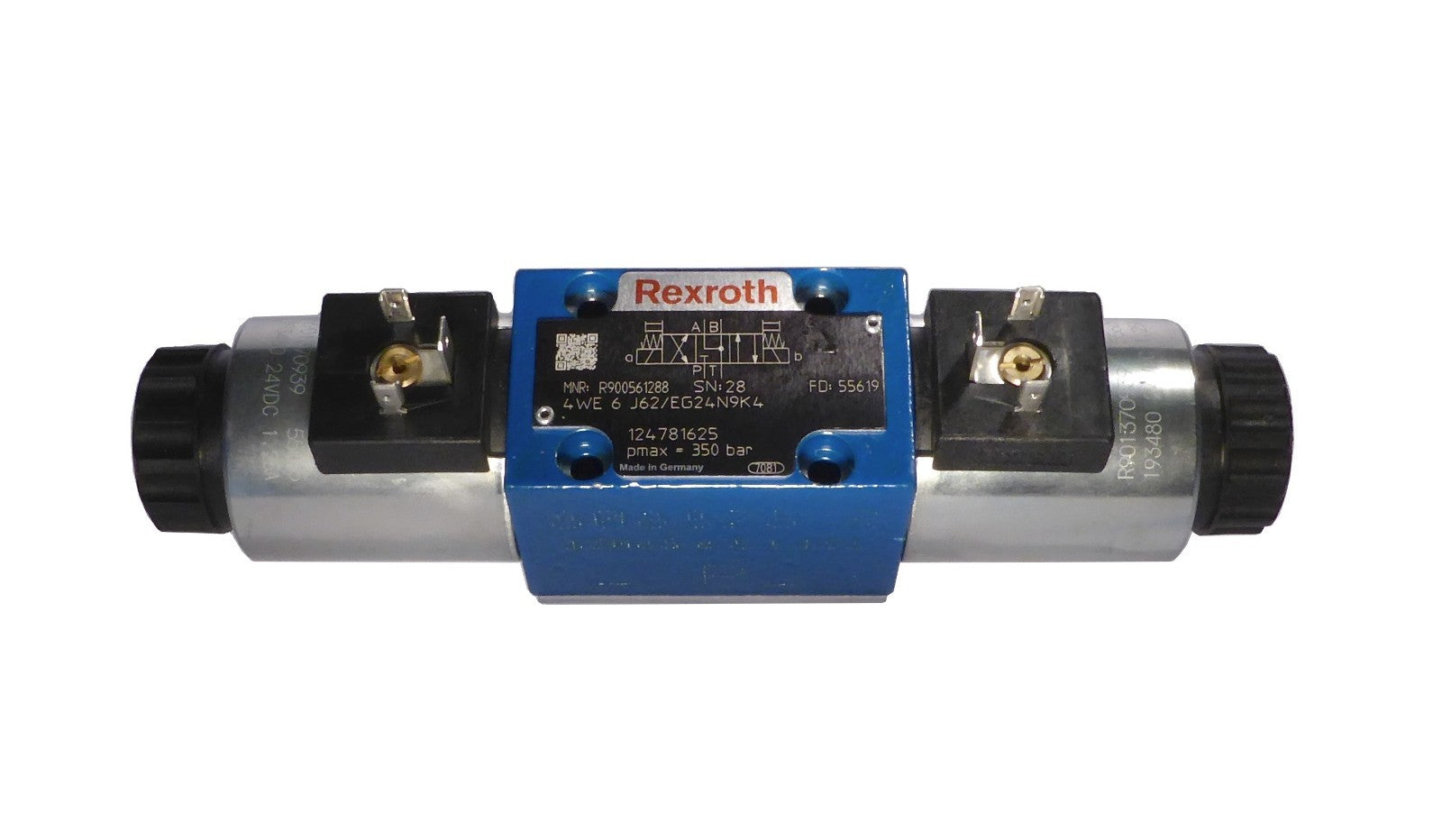

Rexroth R900561288 4WE6J62 / EG24N9K4 Solenoid Valve
Rexroth R900561288 4WE6J62 / EG24N9K4 Solenoid Valve
Couldn't load pickup availability





Description:
The Rexroth R900561288 is a 4/3-way, solenoid-operated directional control valve from the WE6 series. This valve is designed for industrial hydraulic systems to control the start, stop, and direction of fluid flow. It features a spring-centered J spool, dual 24 VDC wet-pin solenoids, and a subplate mounting configuration. The valve is commonly used in applications requiring high reliability and precision, such as machinery automation and motion control.
TECHNICAL SPECIFICATIONS:
Manufacturer: Bosch Rexroth
Part Number: R900561288
Model Code: 4WE6J6X/EG24N9K4
Valve Type: 4-way, 3-position directional spool valve
Spool Symbol: J (spring-centered, all ports blocked in center position)
Solenoid Type: Dual solenoid, wet-pin, 24 VDC
Manual Override: Concealed push-button
Mounting Type: Subplate (CETOP 3 / NG6 / ISO 4401-03-02-0-05)
Maximum Operating Pressure: 350 bar (Ports A, B, P), 210 bar (Port T for DC)
Maximum Flow: 80 L/min (DC operation)
Electrical Connection: 3-pin DIN connector (EN 175301-803)
Seal Material: NBR (standard)
Weight: Approximately 1.99 kg
Fluid Compatibility: Mineral oils and HFC fluids
Ambient Temperature Range: -30°C to +50°C
Certifications: CE, UR, CSA (for solenoids)
Lifecycle Status: Active product
