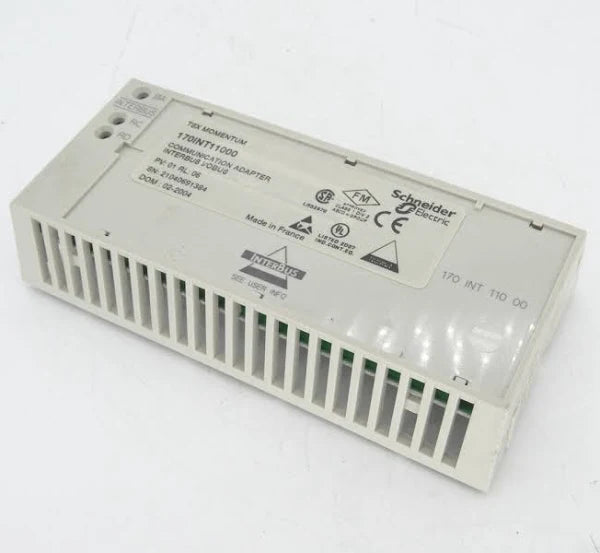

Schneider Electric 170INT11000 Interbus Communication Adaptor 170INT11000

Description:

The Schneider Electric 170INT11000 Interbus Communication Adaptor is used in Modicon Momentum PLC systems to provide network communication over Interbus industrial fieldbus systems. Commonly installed in distributed control systems, material handling equipment, and industrial automation panels where remote I/O communication is required. Maintenance teams and system integrators use this module for system expansion, retrofit, and replacement of communication interfaces to maintain reliable PLC networking.

Applications:

The Schneider Electric 170INT11000 adaptor is widely used in industrial automation environments to enable communication between PLC systems and distributed I/O devices over Interbus networks. It is deployed in manufacturing lines, conveyor systems, energy infrastructure, and packaging machinery where deterministic and high-reliability communication is required. The module supports ring topology networks and allows seamless integration of field devices into Modicon Momentum systems, improving system scalability and real-time data exchange.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: 170INT11000
• Product Type: Interbus Communication Adaptor
• Platform Compatibility: Modicon Momentum PLC systems
• Communication Protocol: Interbus (SUPI 2)
• Topology: Ring network
• Transmission Medium: Twisted pair cable
• Data Transfer Rate: Up to 500 kbps
• Connectors: 2x D-sub (DE-09) ports
• Max Devices per Network: Up to 254 nodes
• Max Cable Distance: Up to 12.8 km total (400 m between nodes)
• Access Method: Master/slave with continuous shift register
• Power Supply: Powered from I/O base
• Enclosure Rating: IP20
• Weight: Approx. 0.07 kg

Common Replacements:

• Schneider Electric BMXNOC0401
• Schneider Electric 140NOE77101
• Schneider Electric TSXETZ410
