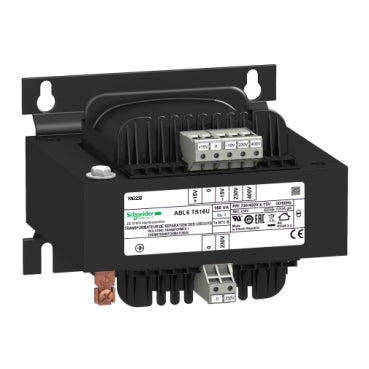

Schneider Electric ABL6TS16U 600mA Phase Control Isolation Transformer 160VA ABL6TS16U

Description:

The Schneider Electric ABL6TS16U 600mA Phase Control Isolation Transformer is used in industrial automation systems to provide electrical isolation and stable voltage supply between the primary power source and control circuits. This transformer is part of the Schneider Electric Phaseo Optimum ABL6TS series and is commonly installed in industrial control panels to supply isolated AC power to automation devices and sensitive control components. Maintenance teams and system integrators frequently use this transformer to support control circuits, protect equipment from electrical disturbances, and replace aging or failed panel-mounted transformers in industrial systems.

Applications:

The Schneider Electric ABL6TS16U transformer is commonly used in industrial environments including manufacturing control panels, machine automation systems, packaging equipment, process control installations, building automation systems, and electrical distribution panels where reliable isolated AC power is required for control circuits and automation components.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: ABL6TS16U
• Product Type: Phase Control Isolation Transformer
• Series: Phaseo Optimum ABL6TS
• Rated Power: 160 VA
• Output Current: Approx. 600 mA
• Primary Voltage: 230 V AC / 400 V AC
• Secondary Voltage: 230 V AC
• Frequency Range: 47–63 Hz
• Efficiency: Approx. 88%
• Mounting Type: Panel mount (screw mounting)
• Terminal Type: Screw terminals
• Protection Rating: IP20
• Operating Temperature Range: -20°C to 50°C
• Electrical Isolation: 4000 V between primary and secondary windings
• Dimensions: Approx. 105 × 81 × 112 mm
• Weight: Approx. 2.9 kg

Common Replacements:

• Schneider Electric ABL6TS10U
• Schneider Electric ABL6TS25U
• Schneider Electric ABL6TS40U
