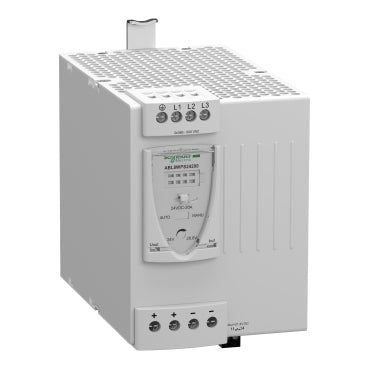

Schneider Electric AC-DC Converter, DIN Rail Transformer ABL8WPS24200

Description:

ABL8WPS24200 POWER SUPPLY 3 PHASE 20 AMP 380-500 VAC INPUT 24 VDC OUTPUT 480 W LED INDICATOR DIN RAIL MOUNT -25 TO +60 DEGREES C The Schneider Electric ABL8WPS24200 is a high-performance AC-DC converter designed for DIN rail mounting in industrial and commercial applications. This compact power supply unit converts AC input voltage to a stable DC output, providing reliable power for various electrical and electronic devices. With an output rating of 24V DC and a maximum current of 20A, the ABL8WPS24200 is well-suited for powering control systems, automation equipment, and other industrial applications requiring stable and regulated power. Its DIN rail compatibility makes it easy to integrate into standard electrical panels.

Technical Specifications:

• Type: AC-DC Converter (DIN Rail Transformer)
• Model: ABL8WPS24200
• Input Voltage: 85-264V AC (wide range to accommodate various supply conditions)
• Output Voltage: 24V DC ±1%
• Output Current: 20A maximum
• Power Rating: 480W
• Efficiency: Typically high efficiency (consult datasheet for specific efficiency rating)
• Ripple and Noise: Low ripple and noise for stable DC output (verify exact values from datasheet)
• Mounting Type: DIN Rail (standard TS35 mounting)
• Protection Features:
• Overload Protection: Protects against excessive current draw.
• Short Circuit Protection: Safeguards against short circuits.
• Overvoltage Protection: Prevents damage from voltage spikes.
• Overtemperature Protection: Shuts down the unit if it overheats.
• Temperature Range: -10°C to +60°C (ensure operating environment is within this range)
• Degree of Protection: IP20 (suitable for indoor use; specific IP ratings may vary)
• Dimensions (HxWxD): Approximately 125 x 125 x 125 mm (verify exact dimensions from datasheet)
• Standards Compliance: CE Marking, UL Listed, and other relevant standards
