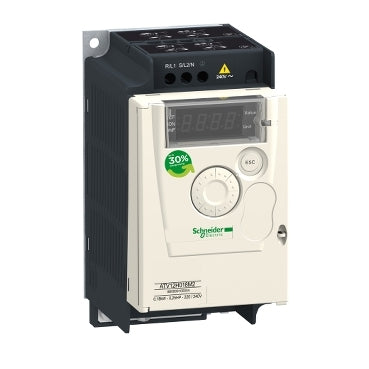

Schneider Electric ATV12H037M2 AC Driver 0.5 HP, 230VAC ATV12H037M2

Description:

The Schneider Electric ATV12H037M2 variable speed drive is used in industrial automation and machine control systems to regulate the speed and torque of asynchronous motors. This Altivar 12 series AC drive converts fixed input power into adjustable frequency output to control motor performance in compact automation equipment. It is commonly installed in small industrial machines, conveyor systems, pumps, fans, and packaging equipment where precise motor speed control is required. Maintenance technicians and system integrators use this drive for motor control upgrades, machine retrofits, and replacement of failed variable frequency drives in automation systems.

Applications:

The Schneider Electric ATV12H037M2 AC drive is widely used in industrial and commercial environments including conveyor systems, small manufacturing equipment, packaging machinery, HVAC systems, pump and fan control systems, and automated production machines where adjustable motor speed and energy-efficient motor control are required.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: ATV12H037M2
• Product Type: Variable Frequency Drive (VFD) / AC Drive
• Series: Altivar 12
• Motor Power Rating: 0.37 kW (0.5 HP)
• Input Voltage: 200–240 VAC single phase
• Output Voltage: 200–240 VAC three phase
• Input Frequency: 50/60 Hz ±5%
• Input Current: 5.9 A at 200 V / 4.9 A at 240 V
• Continuous Output Current: 2.4 A at 4 kHz
• Output Frequency Range: 0.5–400 Hz
• Motor Control Methods: Sensorless flux vector control and V/f control
• Communication Protocol: Modbus via RS-485 interface
• Enclosure Rating: IP20
• Cooling: Heat sink design without internal fan
• Mounting Type: DIN rail or cabinet mount
• Operating Temperature Range: −10°C to 40°C (up to 60°C with derating)
• Dimensions: Approx. 72 mm × 121.2 mm × 143 mm
• Weight: Approx. 0.7 kg

Common Replacements:

• Schneider Electric ATV12H055M2
• Schneider Electric ATV320U04N4C
• Schneider Electric ATV312HU15N4
