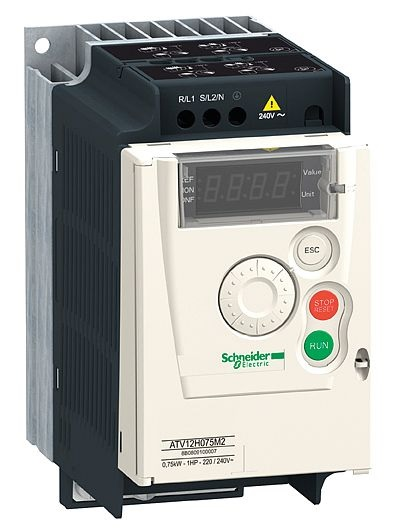

Schneider Electric ATV12H075M2 Altivar 12 AC Drive

Description:

The Schneider Electric ATV12H075M2 Altivar 12 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in small conveyors, pumps, fans, and simple machinery to control single-phase motors in light-duty applications. Maintenance teams, OEMs, and system integrators use this drive for system control, retrofit, or replacement of compact motor drives.

Applications:

The Schneider Electric ATV12H075M2 AC Drive is designed for basic motor control in light industrial and commercial environments where compact size and ease of use are essential. It is widely used in HVAC systems, small automation setups, packaging equipment, and workshop machinery where reliable speed control and energy efficiency are required. With simple parameter configuration and built-in communication capability, it supports standalone operation and integration into small control systems.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV12H075M2
• Product Type: Variable Frequency Drive (VFD)
• Series: Altivar 12
• Power Rating: 0.75 kW (1 HP)
• Input Voltage: 200–240V AC, single-phase
• Output Voltage: 0–230V AC, 3-phase
• Output Current: 4.2 A
• Frequency Range: 0.5 to 400 Hz
• Control Method: V/F control
• Communication: Modbus (RS485)
• Protection Rating: IP20
• Mounting: Panel mount
• Cooling Method: Natural convection
• Overload Capacity: 150% for 60 seconds

Common Replacements:

• Schneider ATV320U07M2B
• Schneider ATV12H055M2
• Allen Bradley 22A-A4P5N114
