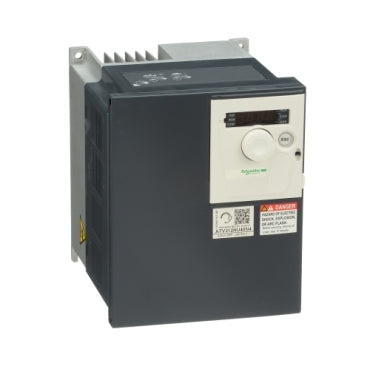

Schneider Electric ATV312HU40N4 Inverter AC MOTOR DRIVE 5 HP 480VAC 3 PHASE ATV312HU40N4

Description:

The Schneider Electric ATV312HU40N4 AC Motor Drive is a 5 HP variable frequency drive used in industrial motor control systems to regulate speed and torque of three-phase motors. Commonly installed in conveyor systems, pumps, fans, compressors, and packaging machinery where precise motor control is required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to improve efficiency and control in industrial applications.

Applications:

The Schneider Electric ATV312HU40N4 drive is widely used in industrial automation environments to control asynchronous motors in a variety of applications. It is deployed in manufacturing plants, processing facilities, and material handling systems for equipment such as conveyors, mixers, pumps, and HVAC systems. With adjustable speed control and energy-efficient operation, this drive enables smooth motor performance, reduced energy consumption, and improved process control across industrial operations.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV312HU40N4
• Product Type: AC Variable Frequency Drive (VFD)
• Motor Power Rating: 4 kW / 5 HP
• Input Voltage: 380–500 VAC, 3-phase
• Apparent Power: 9.2 kVA
• Output Frequency Range: 0–500 Hz
• Output Current: Approx. 9.5 A
• Control Method: Sensorless vector control / V/F control
• Overload Capacity: Up to 150% for 60 seconds
• Communication: Modbus and CANopen
• Protection Features: Overcurrent, overvoltage, thermal protection
• Mounting Type: Panel-mounted with heat sink
• Enclosure Rating: IP20 (typical)
• Weight: Approx. 3.1 kg

Common Replacements:

• Schneider Electric ATV320U40N4C
• Schneider Electric ATV312HU30N4
• Schneider Electric ATV212HU40N4
