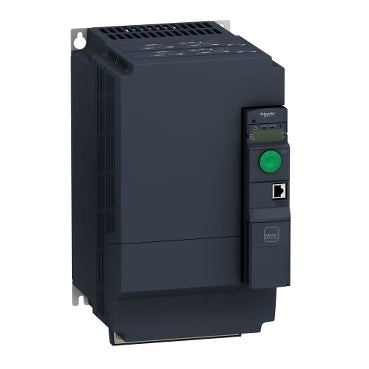

Schneider Electric ATV320D11N4B Inverter ATV320D11N4B

Description:

ATV320D11N4B DRIVE ALTIVAR 320 SERIES VARIABLE SPEED FOR ASYNCHRONOUS AND SYNCHRONOUS MOTORS POWER RATING MULTIPLIER -1 POWER RATING 11 THREE PHASE SUPPLY VOLTAGE: 380-500 VAC 50/60 HZ BOOK FORM FACTOR The Schneider Electric ATV320D11N4B is a compact and highly efficient inverter designed for controlling the speed and torque of three-phase AC motors. With a power rating of 11 kW and operating voltage of 380V to 480V, this inverter is well-suited for a variety of industrial applications, including pumps, fans, and conveyors. The ATV320D11N4B features advanced control capabilities and built-in communication options, offering enhanced flexibility and performance for optimizing motor operations.

Technical Specifications:

• Model Number: ATV320D11N4B
• Type: Inverter Drive
• Power Rating: 11 kW (15 HP)
• Input Voltage: 380V to 480V AC (3-phase)
• Frequency Range: 0 to 599 Hz
• Current Rating: 24.2 A
• Control Type: V/f control, Vector control with or without encoder
• Communication Protocols: Modbus, CANopen, and Ethernet (optional)
• Protection Rating: IP20 (for panel mounting)
• Operating Temperature Range: -10°C to +50°C
• Dimensions: 264 x 185 x 180 mm (H x W x D)
• Certifications: CE, UL, cUL
