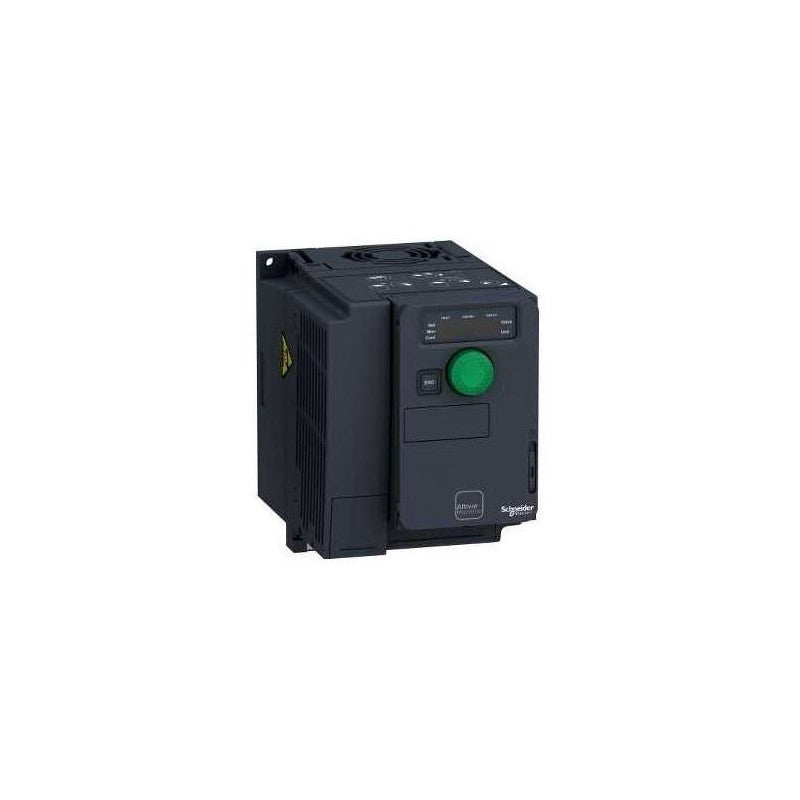

Schneider Electric ATV320U06N4C Variable Speed Drive ATV320U06N4C

Description:

The Schneider Electric ATV320U06N4C Variable Speed Drive is used in industrial automation systems to control the speed and torque of three-phase asynchronous and synchronous motors. This drive is part of the Schneider Electric Altivar Machine ATV320 series and is designed to deliver efficient motor control for machine automation and process applications. It regulates motor speed by adjusting output frequency and voltage, allowing equipment to operate more efficiently and with precise control. The drive is commonly installed in industrial control panels and automation cabinets where reliable variable speed motor control is required. Maintenance teams and system integrators frequently use this drive for machine upgrades, replacement of failed drives, and modernization of motor control systems.

Applications:

The Schneider Electric ATV320U06N4C drive is widely used in industrial environments including manufacturing production lines, packaging machinery, conveyors, pumps and fan systems, material handling equipment, and general industrial machines where adjustable motor speed improves operational efficiency and equipment performance.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model: ATV320U06N4C
• Product Type: Altivar Machine Variable Speed Drive
• Series: Altivar 320
• Motor Power Rating: 0.55 kW (0.75 HP)
• Input Voltage: 380–500 V AC
• Input Phase: 3-phase
• Output Frequency Range: 0.1–599 Hz
• Control Method: Sensorless vector control and V/Hz control
• Communication: Modbus and CANopen supported
• Integrated Features: Safe Torque Off (STO) safety function
• Inputs/Outputs: Multiple digital and analog inputs with relay outputs
• EMC Filter: Integrated EMC filter
• Protection Rating: IP20
• Mounting Type: Panel mounted compact drive
• Operating Temperature Range: −10°C to 50°C
• Function: Variable frequency motor speed control for industrial automation systems

Common Replacements:

• Schneider Electric ATV320U07N4C
• Schneider Electric ATV320U15N4C
• ABB ACS355-03E-02A4-4
