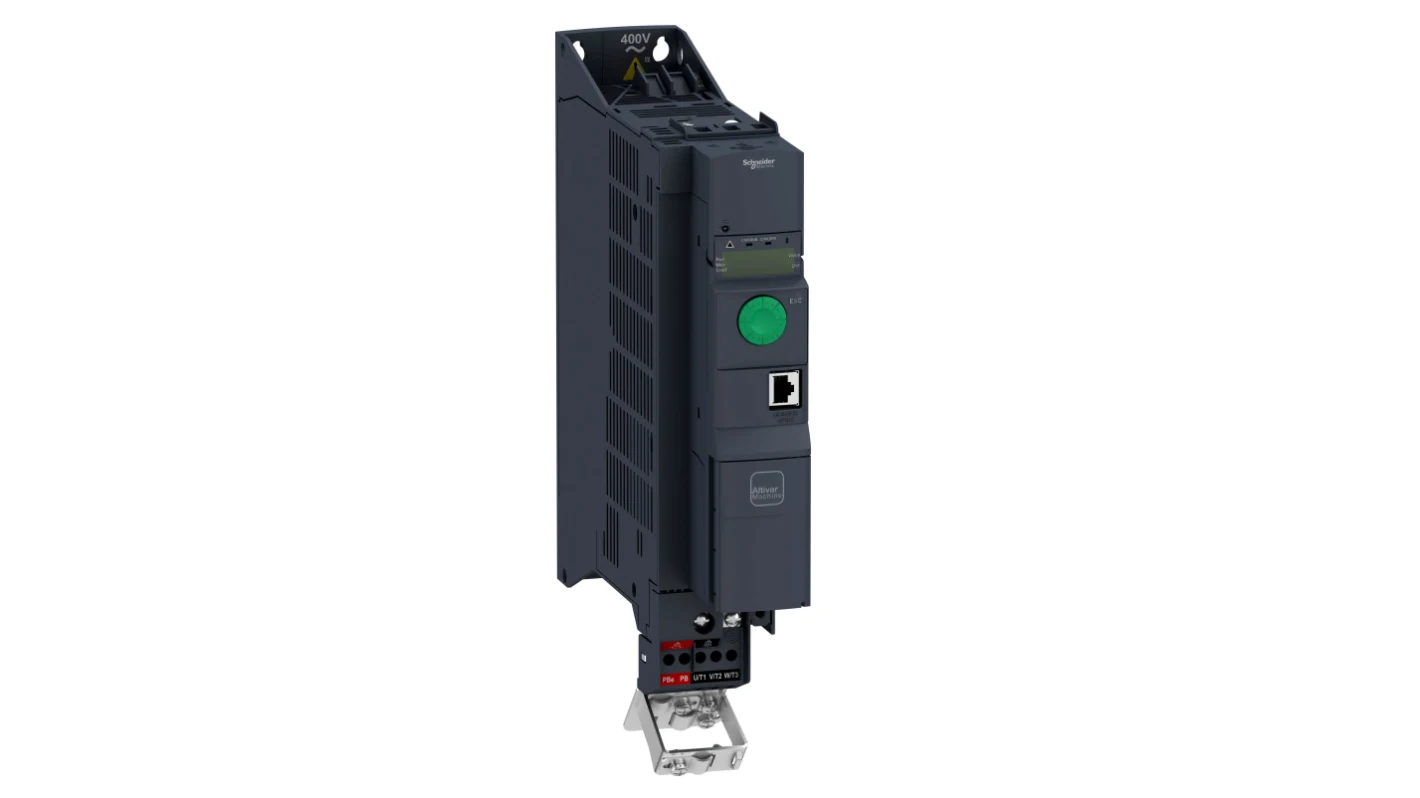

SCHNEIDER ELECTRIC ATV320U15N4B Altivar Machine AC Speed Drive 1.5kw 2 HP

Description:

The Schneider Electric ATV320U15N4B Altivar 320 AC Drive is a variable frequency drive used in industrial motor control systems for precise speed and torque regulation. Commonly installed in conveyors, packaging machines, material handling systems, and automated production equipment to control three-phase AC motors. Maintenance teams, OEMs, and system integrators use this drive for system integration, retrofit, or replacement of compact motor drives.

Applications:

The Schneider Electric ATV320U15N4B is designed for complex machine applications requiring high-performance motor control and compact installation. It is widely used in packaging lines, textile machinery, conveyors, and industrial automation systems where accurate speed control, energy efficiency, and reliability are essential. With support for both asynchronous and synchronous motors, integrated safety features, and flexible control modes, it enables seamless integration into PLC-based systems and improves overall machine performance.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV320U15N4B
• Product Type: Variable Frequency Drive (VFD)
• Series: Altivar Machine ATV320
• Power Rating: 1.5 kW (2 HP)
• Input Voltage: 380–500V AC, 3-phase
• Output Current: 4.1 A (continuous)
• Frequency Range: 0.1 to 599 Hz
• Control Methods: V/F control, sensorless vector control, synchronous motor control
• Communication: Modbus, CANopen (integrated)
• Safety Features: Safe Torque Off (STO), SIL 3
• EMC Filter: Integrated Class C2
• Enclosure Rating: IP20
• Cooling Method: Fan cooled
• Mounting: Book-style panel mount design
• Operating Frequency: 50/60 Hz

Common Replacements:

• Schneider ATV320U15N4C
• Schneider ATV320U07N4B
• Allen Bradley 25B-D2P3N114
