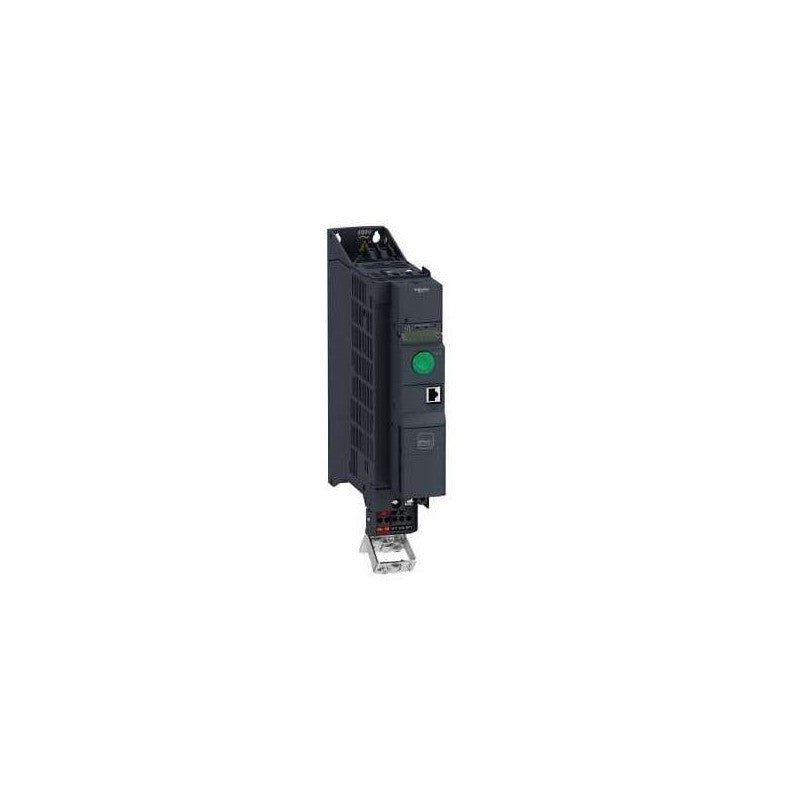

Schneider Electric ATV320U22N4B Inverter 2.2kw 380-500V ATV320U22N4B

Description:

The Schneider Electric ATV320U22N4B Inverter is used in motor control systems for variable speed control of three-phase industrial motors. Commonly installed in conveyors, packaging machines, pumps, fans, and automated production equipment. Maintenance teams, OEMs, and system integrators use this inverter for energy efficiency, motor speed control, system optimization, and replacement of variable frequency drives.

Applications:

The Schneider Electric ATV320U22N4B inverter is used in industrial environments such as manufacturing plants, material handling systems, HVAC systems, and process automation to control motor speed, improve energy efficiency, and enhance machine performance through precise variable frequency drive control.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV320U22N4B
• Product Type: Variable Frequency Drive (Inverter)
• Series: Altivar 320
• Power Rating: 2.2 kW
• Supply Voltage: 380–500 V AC (3-phase)
• Output Current: Approx. 5.5 A
• Control Type: Sensorless vector control
• Communication: Modbus, CANopen (expandable with option cards)
• Mounting: Cabinet / chassis mount
• Protection Rating: IP20
• Operating Temperature: -10°C to +60°C
• Application: Control of asynchronous and synchronous motors
• Form Factor: Book-style compact design

Common Replacements:

• Schneider Electric ATV320U30N4B
• Schneider Electric ATV320U22N4C
• Schneider Electric ATV312HU22N4
