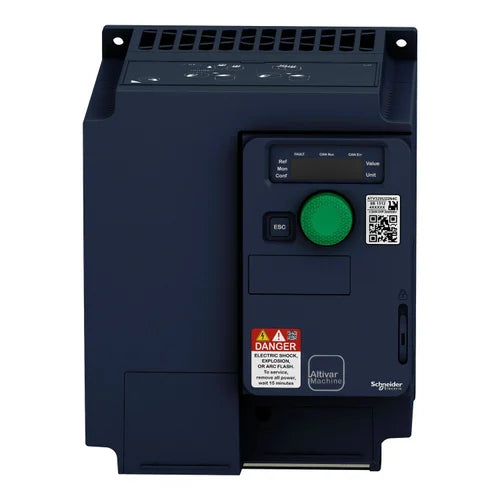

Schneider Electric ATV320U22N4C Variable Speed Drive 3-Phase

Description:

The Schneider Electric ATV320U22N4C AC Drive is a 2.2 kW variable frequency drive used in industrial motor control systems to regulate speed and torque of three-phase motors. Commonly installed in conveyors, pumps, fans, and packaging machinery where precise motor control and energy efficiency are required. Maintenance teams and system integrators use this drive for replacement, retrofit, and system upgrades to improve machine performance and reliability.

Applications:

The Schneider Electric ATV320U22N4C drive is widely used in industrial automation environments to control both asynchronous and synchronous motors. It is deployed in manufacturing plants, material handling systems, HVAC systems, and processing equipment to optimize motor speed, reduce energy consumption, and improve process control. With compact design and advanced control features, it supports high-performance operation in complex machinery applications.

Technical Specifications:

• Manufacturer: Schneider Electric
• Model / Part Number: ATV320U22N4C
• Product Type: AC Variable Frequency Drive (VFD)
• Series: Altivar Machine ATV320
• Motor Power Rating: 2.2 kW / 3 HP
• Input Voltage: 380–500 VAC, 3-phase
• Output Current: ~5.5 A
• Output Frequency Range: 0.1–599 Hz
• Control Methods: V/F and sensorless vector control
• Communication: Modbus and CANopen (built-in)
• Mounting: Panel / chassis mount
• Enclosure Rating: IP20
• Cooling: Fan-cooled
• Dimensions: Approx. 140 × 184 × 158 mm
• Weight: Approx. 2.1 kg
• Application: Industrial motor speed and torque control

Common Replacements:

• Schneider Electric ATV320U22M2C
• Schneider Electric ATV312HU22N4
• Schneider Electric ATV930D22N4
