Description:

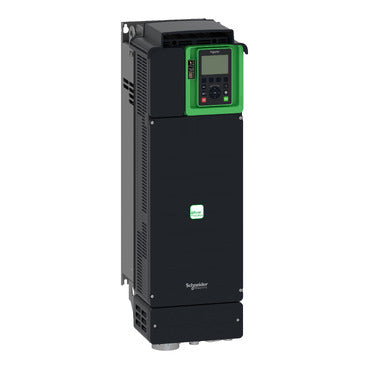

The Schneider Electric ATV630D45N4 Variable Speed Drive is used in industrial automation systems to control the speed and torque of three-phase motors in demanding process and utility applications. This drive is part of the Schneider Electric Altivar Process ATV600 series and is designed to optimize motor performance while improving energy efficiency and operational reliability. It regulates motor speed by adjusting output frequency and voltage, allowing equipment to operate more efficiently and with greater precision. The drive is commonly installed in industrial control panels and motor control centers where reliable high-power motor control is required for large equipment and process systems.
Applications:
The Schneider Electric ATV630D45N4 drive is widely used in industrial environments including water and wastewater treatment plants, pumps and fan systems, oil and gas facilities, mining and metals processing, food and beverage production, and large manufacturing operations where efficient variable speed motor control improves system performance and energy management.
Technical Specifications:
• Manufacturer: Schneider Electric
• Model: ATV630D45N4
• Product Type: Altivar Process Variable Speed Drive
• Series: Altivar Process ATV600
• Motor Power Rating: 45 kW (60 HP) normal duty
• Heavy Duty Motor Rating: 37 kW (50 HP)
• Input Voltage: 380–480 V AC
• Input Phase: 3-phase
• Output Current: Up to 88 A
• Supply Frequency: 50/60 Hz
• Output Frequency Range: 0.1–599 Hz
• Communication: Ethernet, Modbus TCP, Modbus Serial, RS-485
• Control Methods: V/Hz control and advanced motor control modes
• Protection Rating: IP21 / UL Type 1
• Mounting Type: Panel or wall mounted drive
• Dimensions: Approx. 226 × 673 × 271 mm
• Weight: Approx. 28.7 kg
• Operating Temperature Range: −15°C to 50°C
Common Replacements:
• Schneider Electric ATV630D37N4
• Schneider Electric ATV630D55N4
• ABB ACS880-01-046A-3
